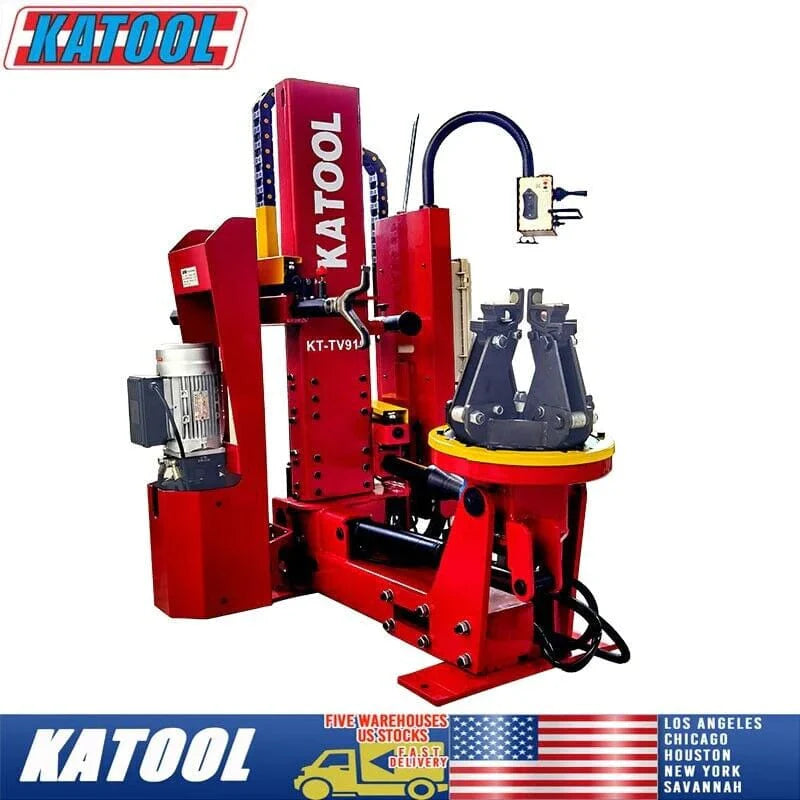

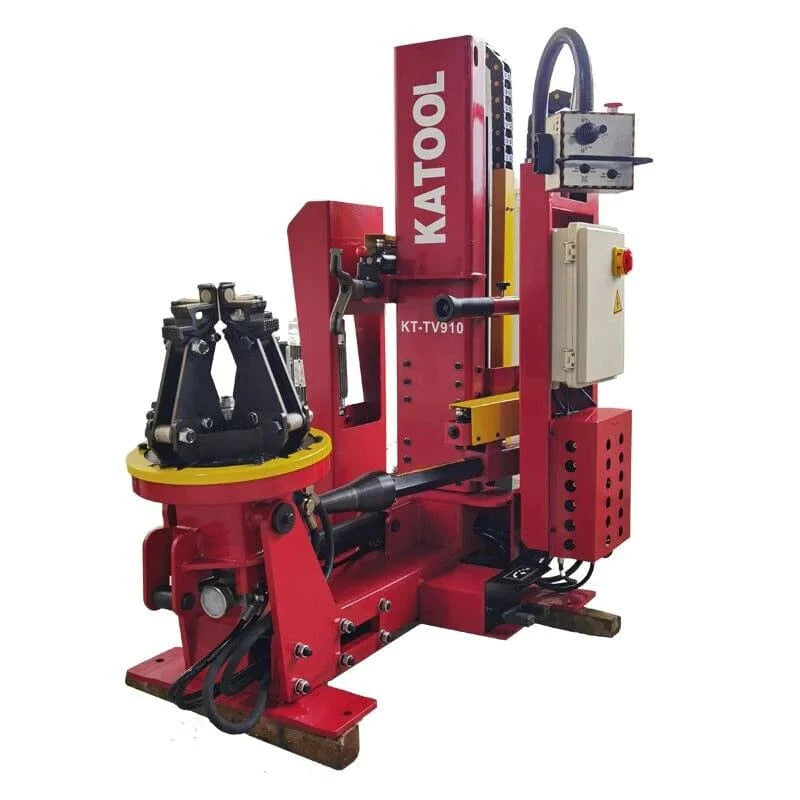

The Katool KT-TV910 is a heavy-duty electro-hydraulic tire changer built for trucks, buses, tractors, and earth-moving equipment. Its external clamping system handles wheel diameters from 14" to 42" ā a range that covers light commercial all the way through large agricultural and construction tires on a single machine, without retooling between jobs. Like the KT-T160, it uses a beak-and-disk bead system that delivers enough clamping force for large commercial tires while keeping contact geometry controlled enough to protect delicate alloy rims.
Where the TV910 steps up is in its operator ergonomics. Foot pedals are positioned for natural stance during operation, and helper controls are located at the point of use rather than on a central panel ā meaning the operator doesn't have to step away from the tire to actuate the next function. On a 42" earth-mover tire that takes two people to handle, having controls within reach from wherever you're standing isn't a convenience feature, it's a safety consideration. The multifunctional control layout supports operation from any position around the machine, and low-voltage electrical components throughout the control circuit reduce shock risk in the wet conditions of a commercial tire bay.
The KT-TV910 is built for commercial tire centers, truck fleet shops, agricultural equipment dealers, and heavy construction service operations that need a machine capable of handling the full size range of commercial and industrial tires daily. Shops currently running separate machines for light commercial and heavy tires will find the 14"ā42" clamping range consolidates that work onto one piece of equipment.
Features
- Heavy-duty electro-hydraulic tire changer designed for trucks, buses, tractors, and earth-moving vehicle tires
- External clamping range from 14" to 42" in diameter for maximum service flexibility across a wide range of wheel sizes
- Multifunctional controls allow safe operation from any position

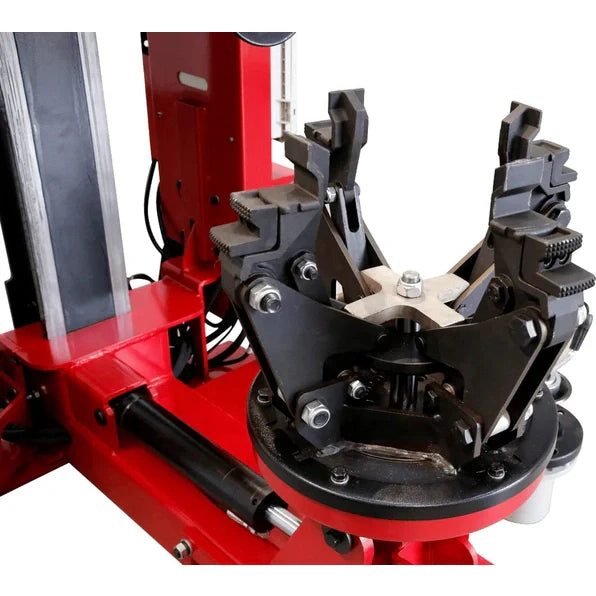

- Powerful bead and disk system delivers precise, high-force bead seating ā even on the most delicate rims
- Ergonomically positioned foot pedals and helper controls located at the point of use minimize training time and reduce operator error
- Low-voltage electrical components for enhanced operator safety
Specifications
| Outer Rim |
14'' - 42'' |
| Max Wheel Diameter |
63'' / 1600mm |
| Max Wheel Width |
31'' / 780mm |
| Working Pressure |
?130 bar |
| Power Supply |
220V 1PH/60HZ |

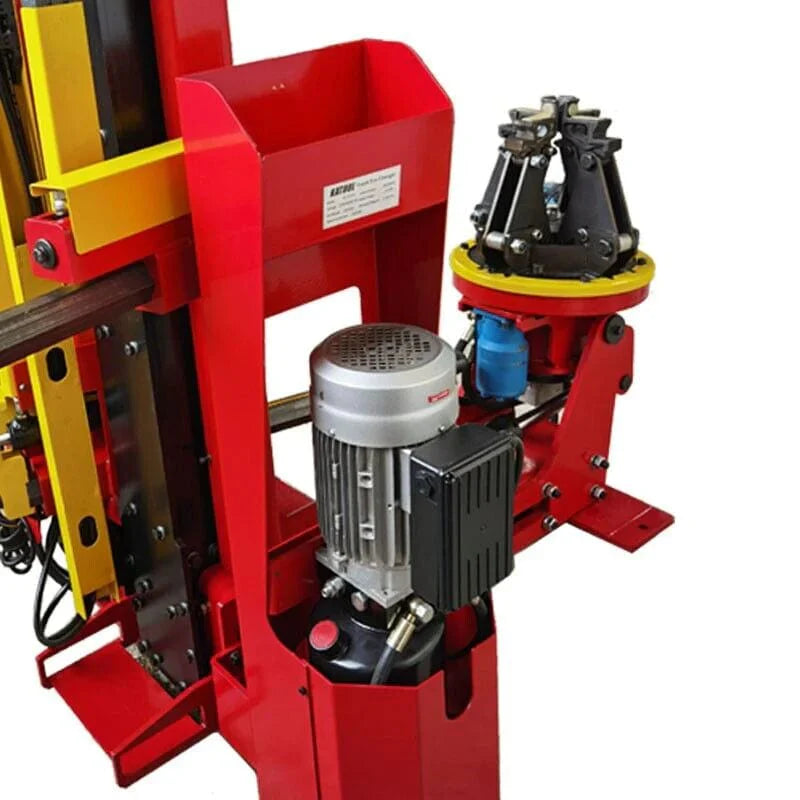

| Hydraulic Motor |
3.0 KW (***4.0 HP Motor***) |
| Max Flow of Oil for Hydraulic Motor |
315 |
| Max Tire Weight |
3306lbs / 1500KG |
| Net Weight |
1256lbs / 570KG |
| Shipping Weight |
1388lbs / 630KG |
| Shipping Dimension |
51'' x 43'' x 72'' / 1300mm x 1100mm x 1830mm) |
| Noise Level |
< 70 DB(A) |
Ā
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included
