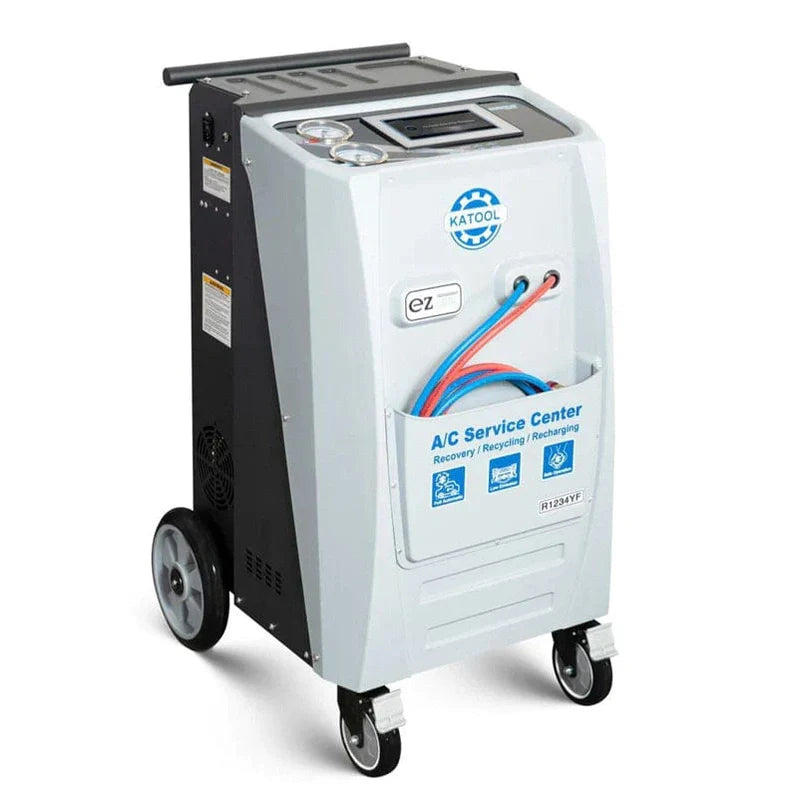

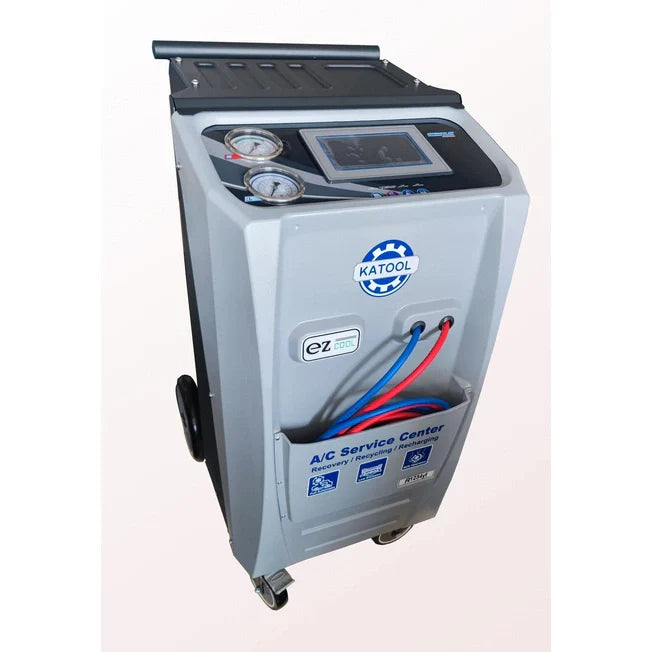

The Katool AC2100 is a fully automatic R-1234yf refrigerant recovery, recycle, and recharge machine built for shops servicing the expanding mix of conventional, hybrid, and electric vehicles now requiring 1234yf refrigerant. It achieves a minimum 95% recovery rate in under 30 minutes, keeping bay time tight on HVAC jobs that would otherwise sit waiting on refrigerant handling. Charge accuracy runs to ±0.5 oz (15 g), delivered through loadcell technology that measures both gas and oil by weight rather than pressure estimation — the difference between a precise recharge and one that's close enough.

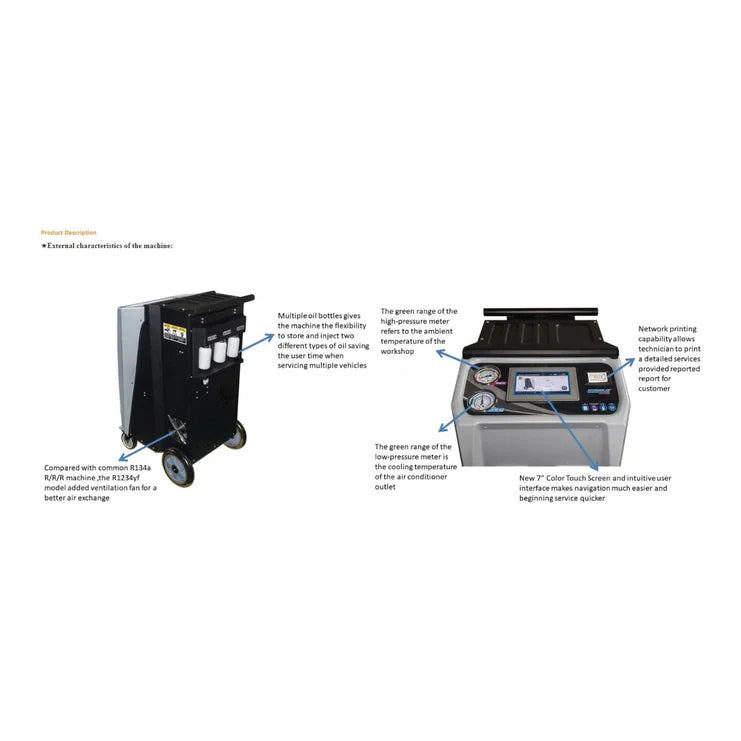

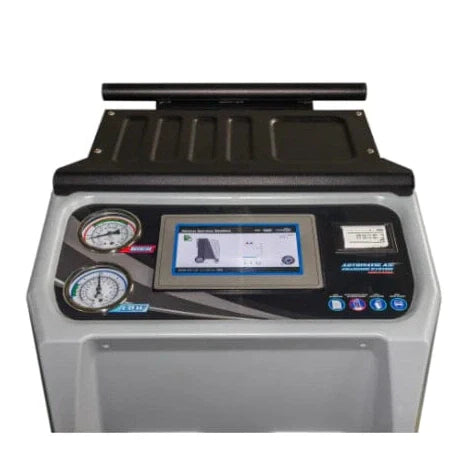

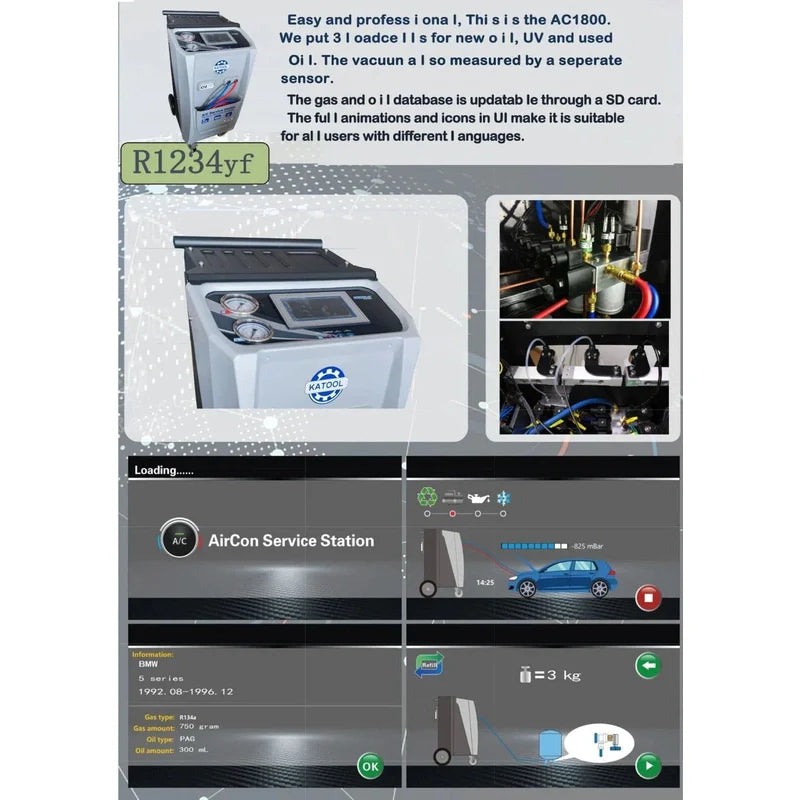

The 7-inch touchscreen HQ display walks the technician through the full recovery, recycle, and recharge sequence automatically, reducing the procedure to monitored steps rather than manual valve work. A built-in printer outputs a service record at job completion — useful for customer documentation and warranty compliance on newer vehicles where refrigerant service records matter. SD card database support stores vehicle-specific charge quantities, so the correct amount goes in without manual lookup. The machine also runs vacuum testing to verify system integrity before recharge, catching leaks before the refrigerant goes back in. A fan and condenser system manages operating temperature during continuous use, and an optional heating belt improves recovery efficiency in cold ambient conditions.
The AC2100 is built for independent repair shops and dealership service departments adding 1234yf capability to their HVAC service offering, and high-volume shops that need a fast, accurate, fully automatic machine that minimizes technician time on refrigerant handling and produces a printed record for every job.
Features
- High-performance refrigerant recovery achieves a 95% recovery rate in under 30 minutes for minimal vehicle downtime
- Compatible with a broad range of vehicles including electric and hybrid models, supporting various automotive HVAC systems

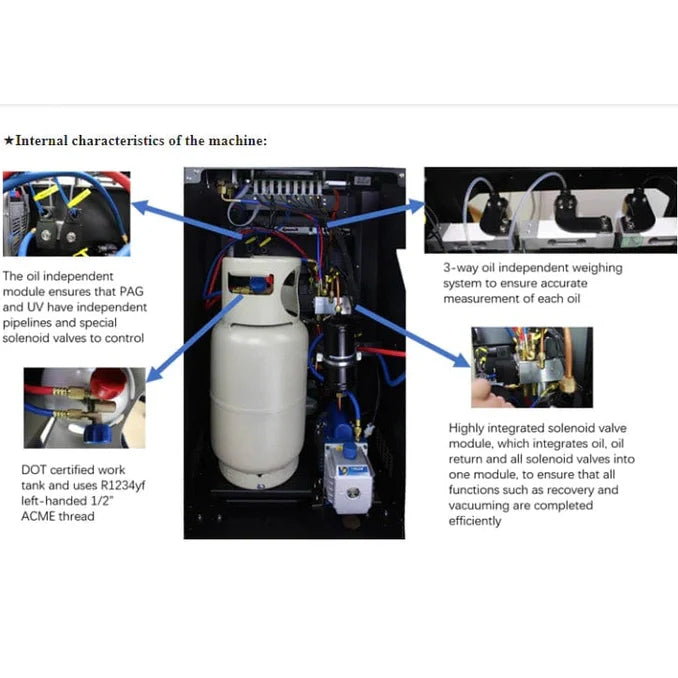

- Advanced load-cell technology delivers precise refrigerant and oil charging with an accuracy of 0.5 oz (15 g)
- 7" high-quality touchscreen display provides an intuitive, easy-to-navigate user experience
- Built-in printer, vacuum testing, fan and condenser system, SD database support, and optional heating belt for a comprehensive, full-service experience
Specifications
|
Applicable Refrigerant Type
|
R1234YF
|
|
Voltage
|
110V AC, 60 Hz
|
|
Recovery Performance(70-75F)
|
Min.95% in less than 30min
|
|
Charge Performance(70-75F)
|
0.5 oz (15 g)
|
|
Operate Temperature Range
|
41-122F (5-50C)
|
|
Max Pressure
|
18 bar
|
|
Filter-Drier Capacity
|
175 lbs (80kg),spin-on type
|
|
Gas Loadcell Accuracy
|
0.04oz/66lbs(1g/30kg)
|
|
Oil Loadcell Accuracy
|
0.04oz/66lbs(1g/30kg)
|
|
Vacuum Transducer Accuracy
|
1 mBar/1000mBar
|
|
Recovering Speed
|
39.7 lbs/h (18kg/h)
|
|
Charge Speed
|
2.2 lbs/min(1kg/min)
|
|

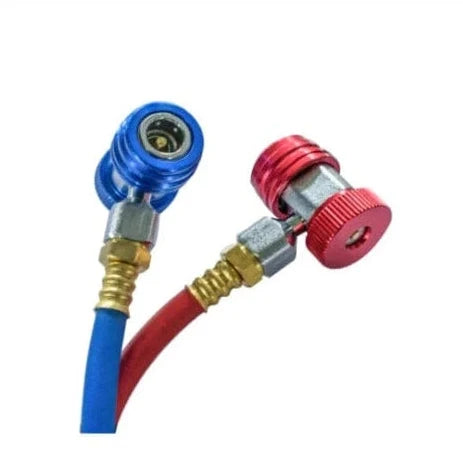

Hose Length
|
9.8(3m)SAE J2788
|
|
Compressor
|
1/3hp(246W).themal protected,oiled,hermetically sealed
|
|
Vacuum Pump
|
3.6 CFM(120L/min),dual stage
|
|
Display
|
7touch HQ
|
|
Tank
|
0.5 cubic feet(14.3L)
|
|
Oil Bottle
|
15 cubic inch(250mL)
|
Additional Information
|
Printer
|
YES
|
|
Heating Belt
|
optional
|
|
SD Database
|
YES
|
|
Vacuum Test
|
YES
|
|
Fan&Condenser
|
YES
|
|
Packing Size
|
22x 28x41(550x700x1050mm)
|
|
Gross Weight
|
240lb(110kg)
|
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included
