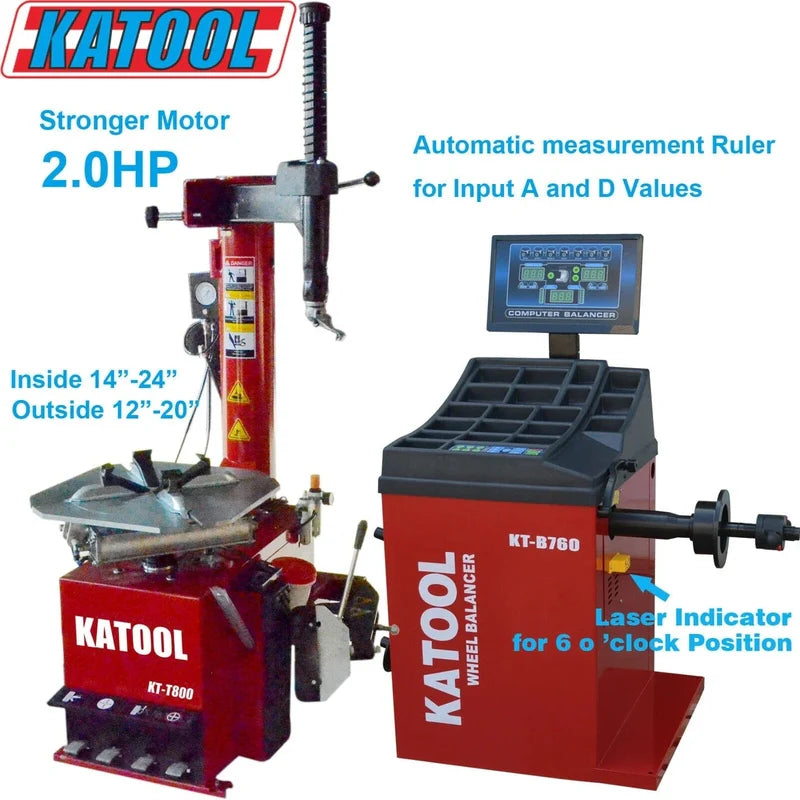

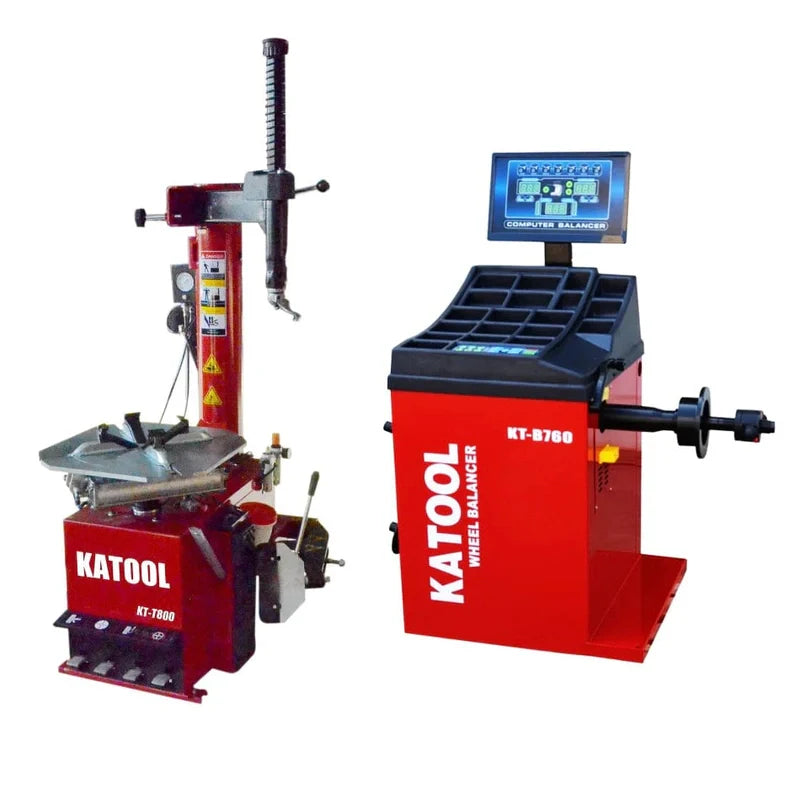

The Katool KT-T800 and KT-B760 pairs the 110V/1-phase/2.0 HP T800 tire changer with the B760 wheel balancer — the same balancer from the T810/B760 combo, matched here to the 110V T800 for shops on standard North American single-phase circuits. The practical difference from the T800/B700 combo is the balancer: the B760 adds an automatic measurement ruler that inputs A and D values without manual entry, cutting per-wheel setup time on the balancer side. Both machines run pure copper-wound motors for faster heat dissipation and longer service life under continuous shop use.
The T800 carries the same construction spec as in the T800/B700 pairing: alloy steel jaw carburized to 0.8–1.1mm depth and through-hardened for wear resistance with a tough core, stainless steel mounting head with solution treatment and interface polishing, and plastic rim protectors on both contact points for alloy wheel service. A high-quality lubricator filters compressed air and delivers consistent oil-drop lubrication to the pneumatic circuit, and the closed body design keeps internal components protected from shop debris. The pull-type pedal control keeps both hands on the tire during operation. On the B760, the 3mm steel body with 8mm sensor mounting boards isolates the measurement circuit from vibration, the quench-hardened φ36mm shaft handles heavier wheels without flex, and the built-in self-calibration and fault diagnosis program runs without pre-set parameters. A longer shaft and optional wheel guard are available for wider fitments.
This combo is the right fit for shops on 110V service that process enough volume to benefit from the B760's automatic measurement over the B700's manual input — the time saving on the balancer adds up quickly in a busy tire bay. It suits independent tire shops, alignment centers, and repair facilities that want the full B760 feature set without stepping up to the 120V T810.
Features

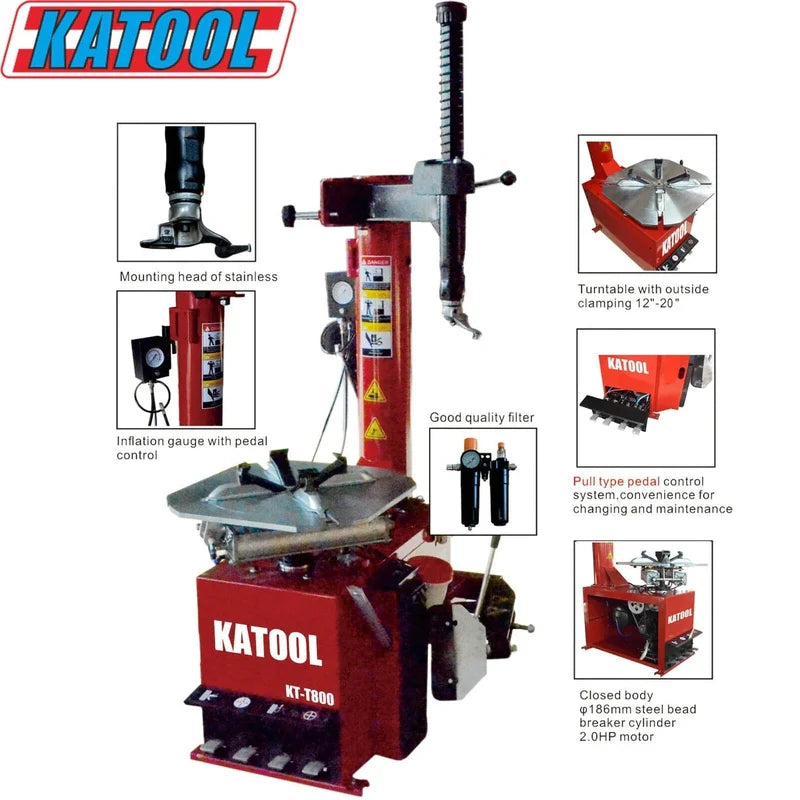

KT-T800 Tire Changer
- Alloy steel jaws with 0.8–1.1mm carburized interface and full quench treatment for a tough exterior and resilient core; jaw covers included for rim protection
- Stainless steel mounting head with solution treatment and polished interface, engineered to conform to proper mounting geometry; plastic rim cover included

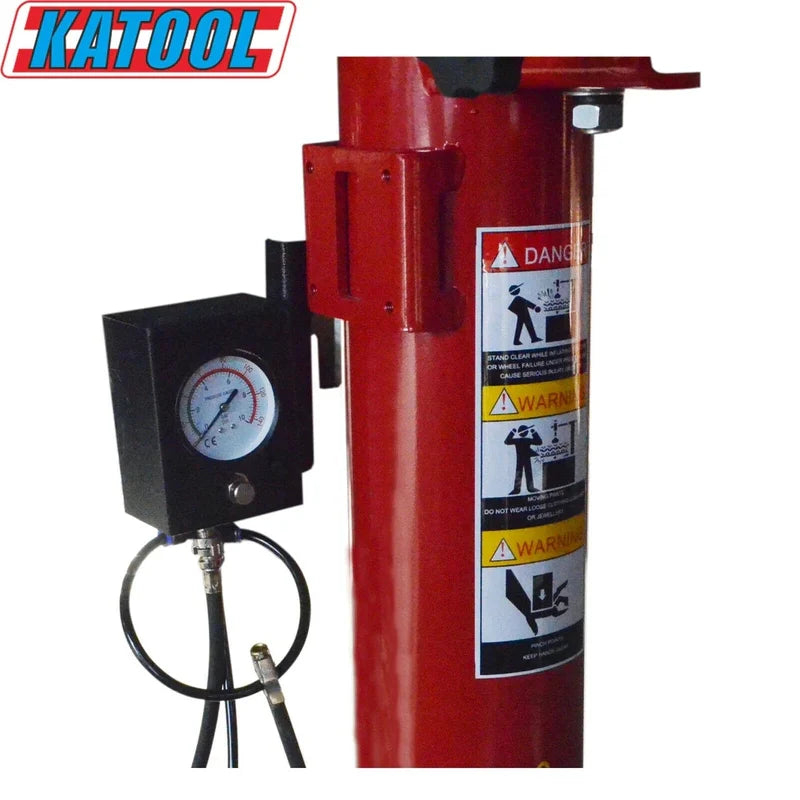

- Inflation gauge with pedal control for convenient, hands-free inflation
- High-quality spade cover effectively prevents rim damage during operation
- Pull-type pedal control system for easy tire changing and straightforward maintenance access

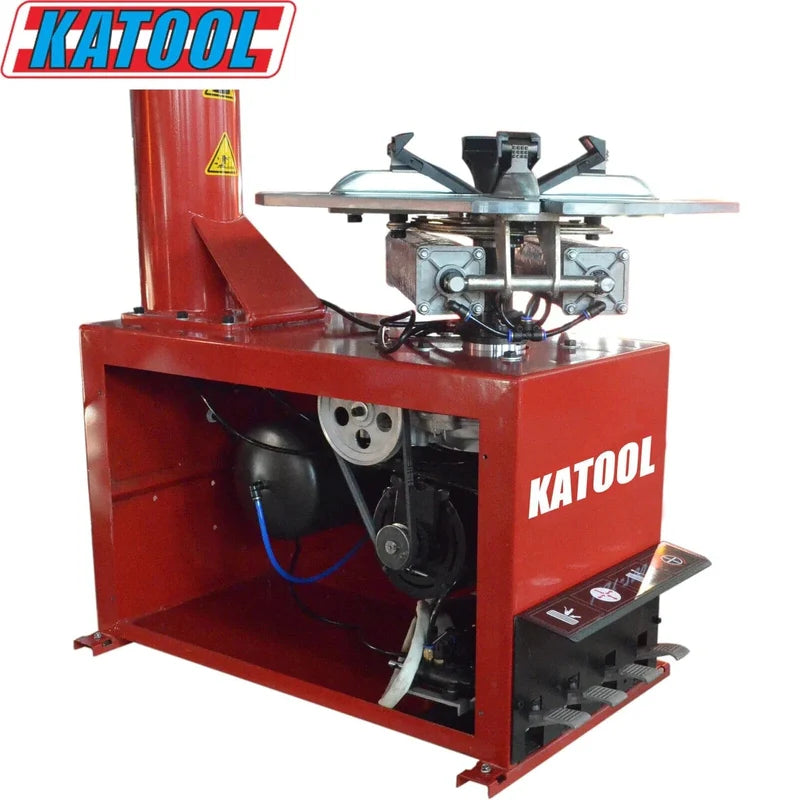

- Top-grade motor with pure copper windings for greater power, fast heat dissipation, low defect rate, and extended service life
- High-quality lubricator ensures reliable oil separation and effective compressed air filtration for longer pneumatic system life
- Enclosed body design protects internal components from shop debris and damage
- 110V / 1PH / 2.0 HP motor configured for North American use, delivering maximum power and high-efficiency performance
KT-B760 Wheel Balancer — Features

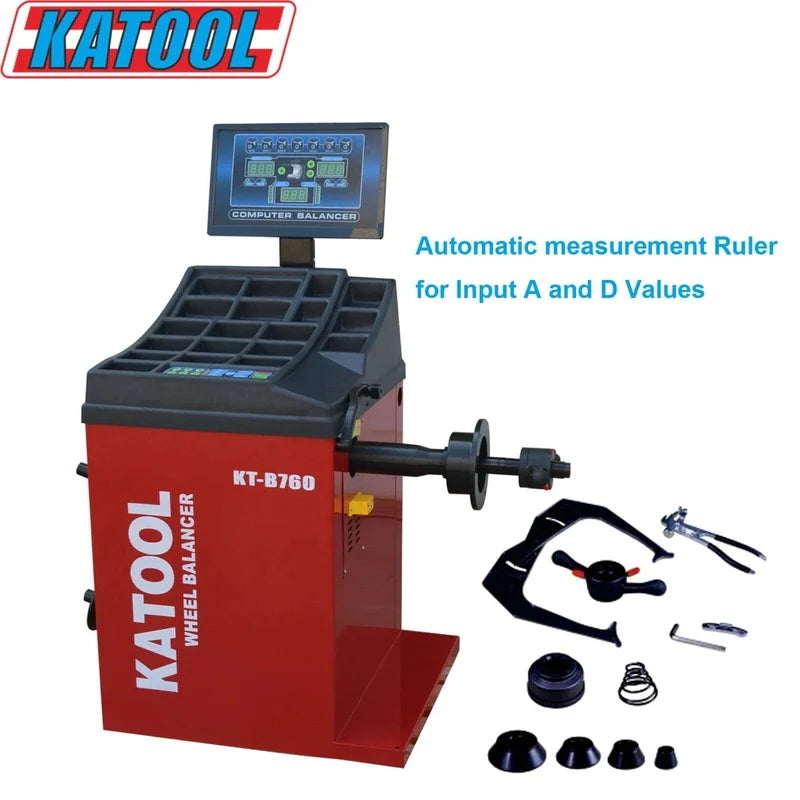

- Automatic measurement ruler for hands-free A and D value input
- Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
- All-in-one pressure sensor mounted on 8mm thick base and side boards for stable, high-precision readings
- Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life
- φ36mm quench-hardened shaft thread for superior strength and durability
- Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
- Multiple balance modes tailored to different rim types for precise, accurate balancing
- Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
- Selectable units for Ounce/Gram and MM/Inch measurements
- High-quality integrated power board ensures stable, consistent performance

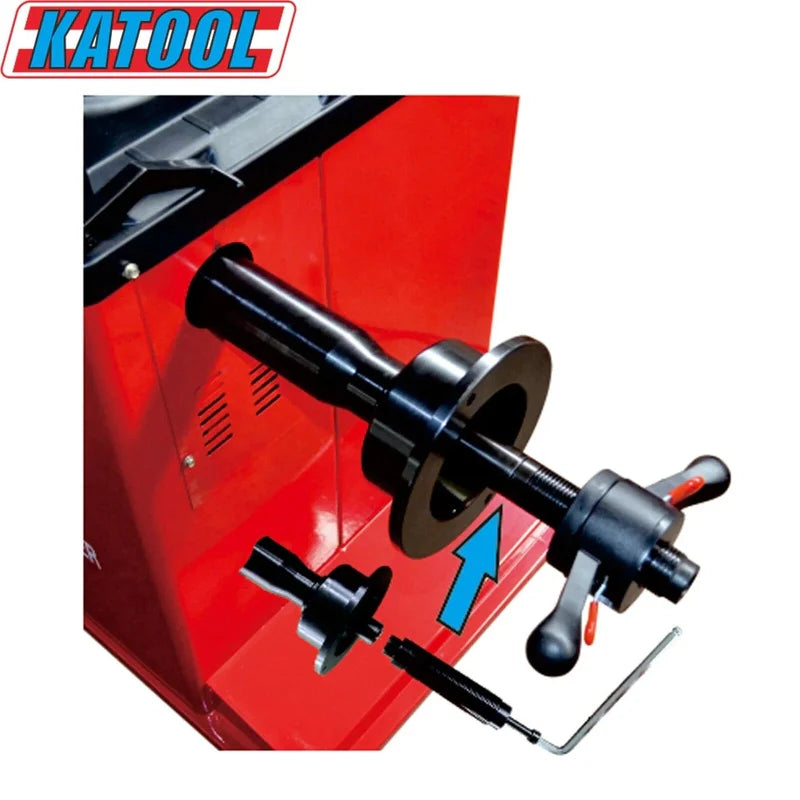

- Extended shaft accommodates wider wheels
- Optional wheel guard available
Specifications

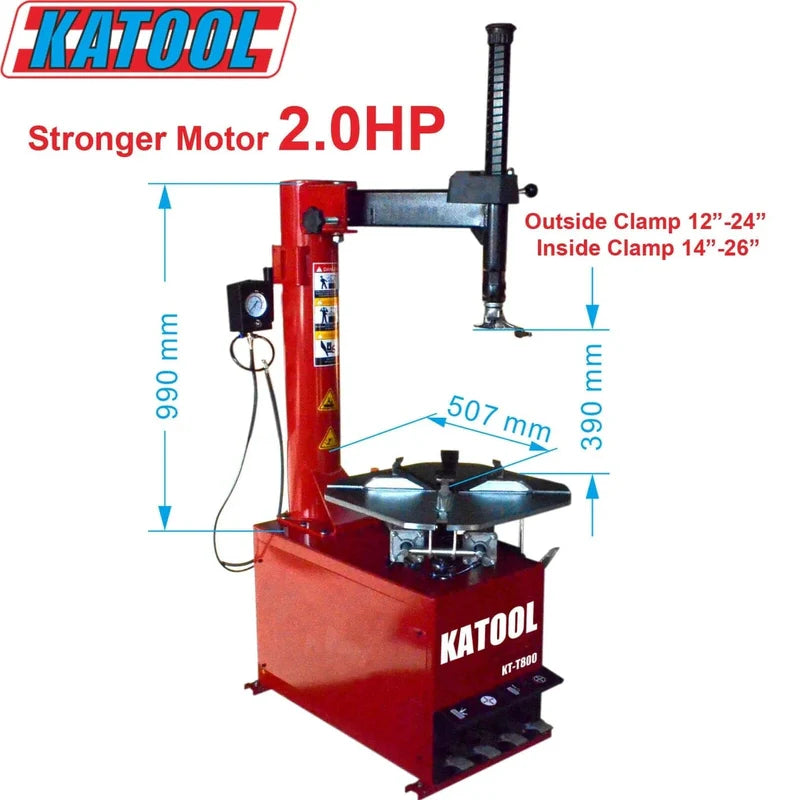

KT-T800 Wheel Clamp Tire Changer Machine
| Max Wheel Diameter: |
41"/1040mm |
| Max Wheel Width: |
15"/380mm |
| Outside Clamp: |
12"-20" |
| Inside Clamp: |
14"-24" |
| Power Supply: |
110V 1PH |
| Motor Power: |
2.0HP/1.5KW |
| Rotation Speed: |
6.8r/min |
| Air Pressure: |
0.8-1.0Mpa(116-145psi) |
| Net weight: |
186KG/410lbs |
KT-B760 Wheel Balancer
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
110V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
1g |
| Measuring Time: |
7S |
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included
