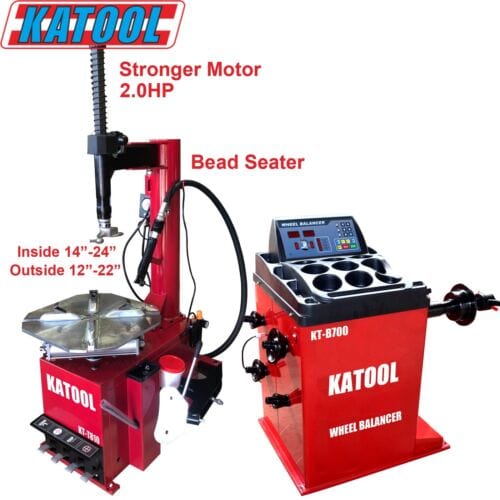

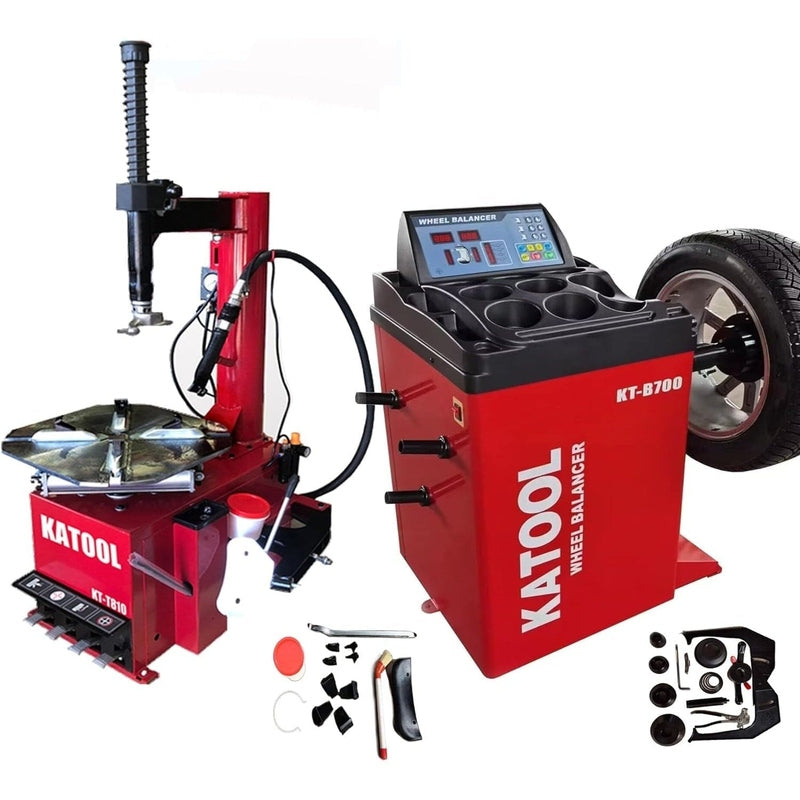

The Katool KT-T810 and KT-B700 pairs the 120V/1-phase/2.0 HP T810 tire changer with the B700 wheel balancer — the inverse of the T800/B760 combo, and the right configuration for shops on 120V service that don't need the B760's automatic measurement ruler and prefer the lower-cost B700 balancer. The T810 and T800 share the same jaw and mounting head construction; the voltage is the dividing line between them. Both machines run pure copper-wound motors for faster heat dissipation and longer service life under continuous shop use.
The T810 carries the full construction spec shared across the T800 line: alloy steel jaw carburized to 0.8–1.1mm depth and through-hardened for wear resistance with a tough core, stainless steel mounting head with solution treatment and interface polishing, and plastic rim protectors on both contact points for alloy wheel service. A high-quality filter and lubricator cleans and conditions compressed air through the pneumatic circuit, extending service life on the components that wear first. The pull-type pedal control keeps both hands on the tire during operation, and the closed body design protects internal components from shop floor debris. The B700 delivers the same structural spec as in the T800/B700 pairing: 3mm steel body with 8mm sensor mounting boards, quench-hardened φ36mm shaft, and a built-in self-calibration and fault diagnosis program that runs without pre-set parameters. A longer shaft and optional wheel guard are available for wider fitments.
This combo suits shops on 120V service that want the T810's voltage compatibility without paying for the B760's automatic measurement feature — a practical choice for lower-volume tire operations where per-wheel setup time on the balancer is less of a bottleneck, and for shops adding a second tire station that already have a higher-spec balancer elsewhere in the bay.
Features

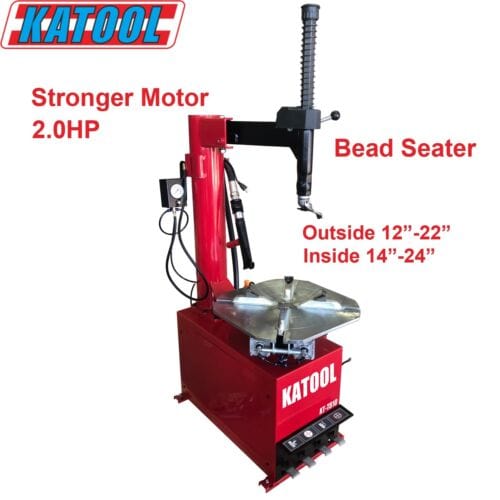

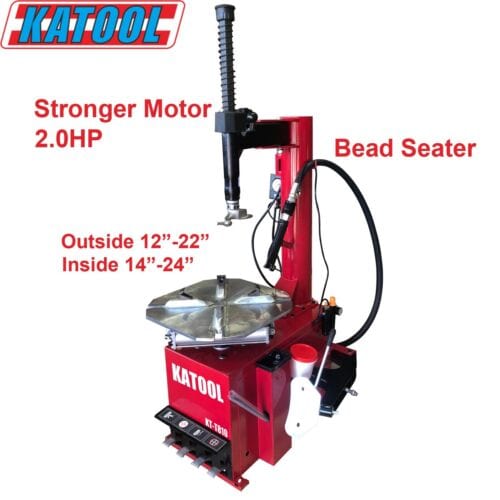

KT-T810 Tire Changer
- Alloy steel jaws with 0.8–1.1mm carburized interface and full quench treatment for a tough exterior and resilient core; jaw covers included for rim protection
- Stainless steel mounting head with solution treatment and polished interface, engineered to conform to proper mounting geometry; plastic rim cover included
- Inflation gauge with pedal control for convenient, hands-free inflation
- High-quality spade cover effectively prevents rim damage during operation
- Pull-type pedal control system for easy tire changing and straightforward maintenance access
- Top-grade motor with pure copper windings for fast heat dissipation, low defect rate, and extended service life
- High-quality filter system ensures reliable oil separation and effective air filtration for longer pneumatic system life
- Enclosed body design protects internal components from shop debris and damage
- 120V / 1PH / 2.0 HP motor configured for North American use, delivering strong power and high-efficiency performance

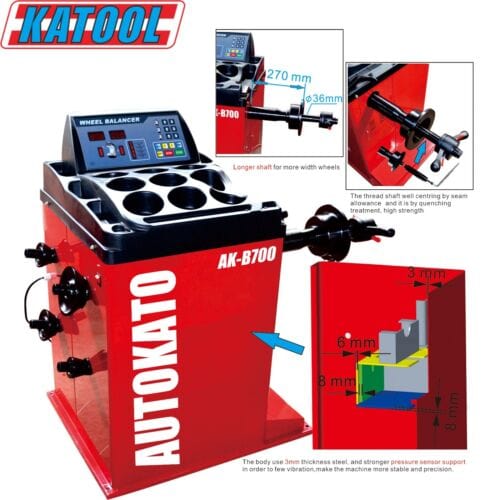

KT-B700 Wheel Balancer — Features
- Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
- All-in-one pressure sensor mounted on 8mm thick base and side boards for stable, high-precision readings
- Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life

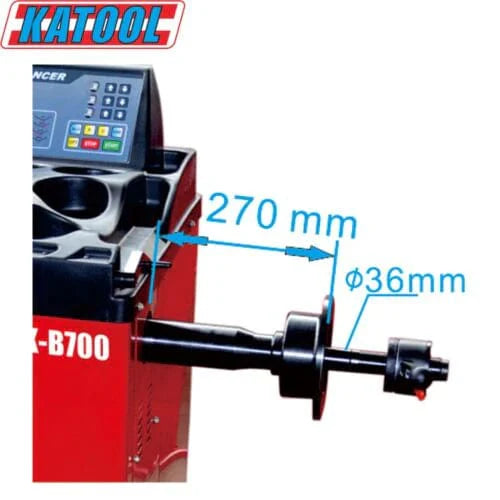

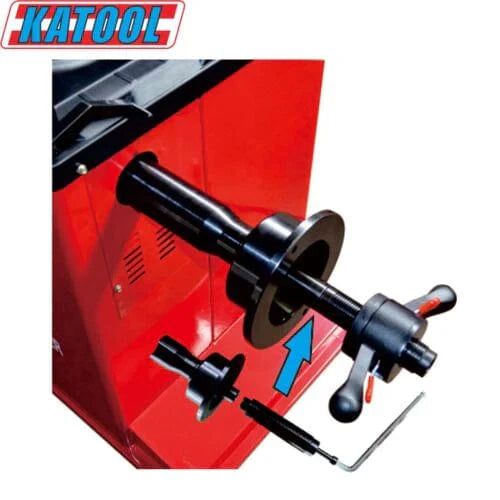

- φ36mm quench-hardened shaft thread for superior strength and durability
- Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
- Multiple balance modes tailored to different rim types for precise, accurate balancing
- Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
- Selectable units for Ounce/Gram and MM/Inch measurements
- High-quality integrated power board ensures stable, consistent performance

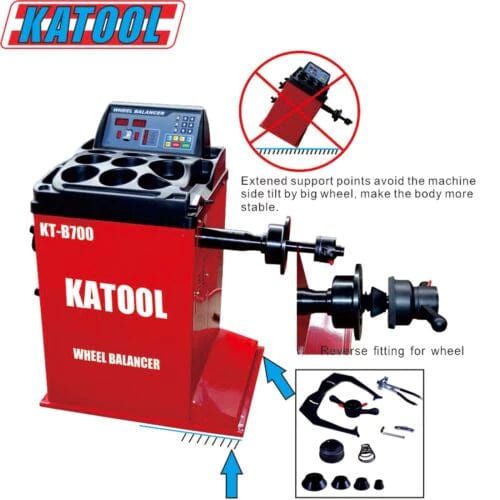

- Extended shaft accommodates wider wheels
- Optional wheel guard available
Specifications

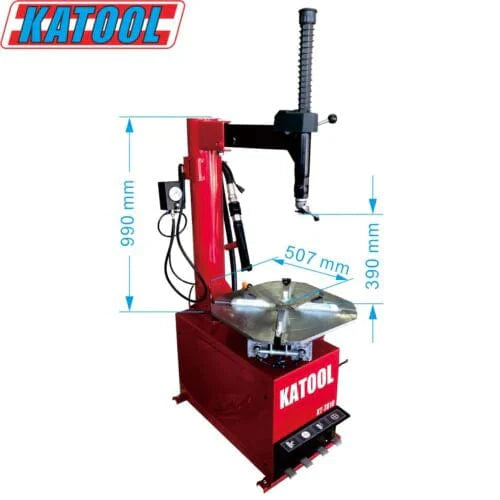

KT-T810 Wheel Clamp Tire Changer Machine
|
Max Wheel Diameter :
|
41"/1040mm
|
|
Max Wheel Width :
|
15"/380mm
|
|
Outside Clamp:
|
12"-22" |
|
Inside Clamp :
|
14"-24" |
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.8r/min |
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi) |
|
Net weight :
|
186KG |
KT-B700 Wheel Balancer
|
Rim Diameter:
|
<30"
|
|
Wheel Width:
|
3"-12"
|
|
Wheel Diameter:
|
<880mm
|
|
Balancing Speed:
|
180rpm
|
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
0.25KW
|
|
Rim Center Hole Dia.:
|
<135mm
|
|
Wheel Weight:
|
<65KG
|
|
Balancing Accuracy:
|
1g
|
|
Measuring Time:
|
7S
|
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included
