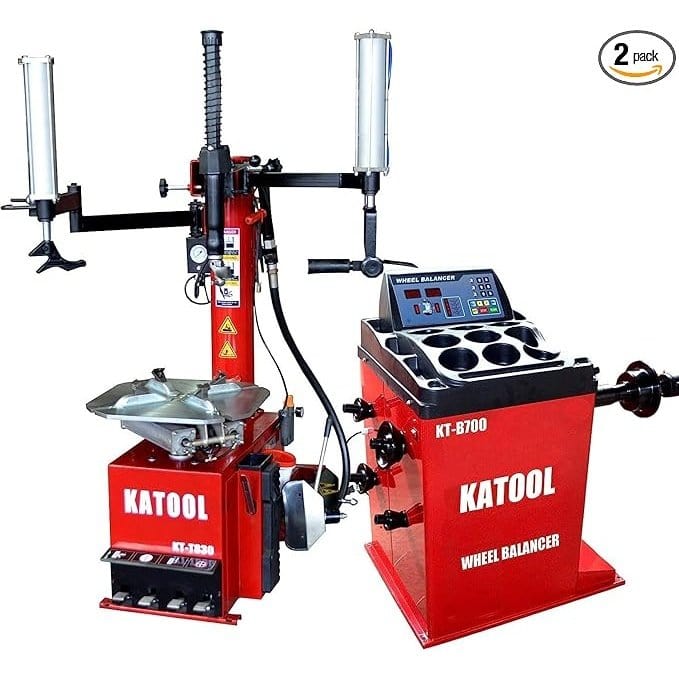

The Katool KT-T830 and KT-B700 pairs the 110V/1-phase/2.0 HP T830 tire changer with the B700 wheel balancer, and the T830 is the step up from the T800 in this voltage class — it adds a double-side assist arm, a bead blast seater with post tank, and a 186mm (7.32") stainless steel bead breaker cylinder to the same core construction shared across the T800/T810 line. Those three additions target the tire types that a standard wheel clamp changer struggles with: run-flat tires, stiff low-profile fitments, and beads that won't seat without a blast of air. The T830 runs on 110V single-phase service and is built around a pure copper-wound 2.0 HP motor for heat dissipation and service life consistent with the rest of the lineup.
The jaw and mounting head spec carries over from the T800: alloy steel jaw carburized to 0.8–1.1mm depth and through-hardened, stainless steel mounting head with solution treatment and interface polishing, and plastic rim protectors on both contact surfaces. A high-quality lubricator filters compressed air and conditions the pneumatic circuit, and the closed body design protects internal components from shop debris. The double-side assist arm supports the tire from both sides during demounting and mounting — the feature that makes run-flat and low-profile work manageable without a second technician holding the tire. The B700 delivers the standard spec: 3mm steel body with 8mm sensor boards, quench-hardened φ36mm shaft, and self-calibration with fault diagnosis requiring no pre-set parameters. A longer shaft and optional wheel guard are available for wider fitments.
This combo is the right fit for shops on 110V service that regularly encounter run-flat tires, stiff low-profile fitments, or beads that resist standard breaking — the T830's assist arm and bead blast seater handle those jobs without the workarounds a basic wheel clamp machine requires. It suits independent tire shops and dealership service bays processing a mixed vehicle range where the occasional difficult tire shouldn't slow the bay down.
Features

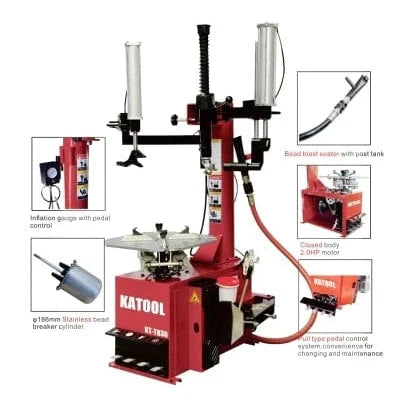

KT-T830 Tire Changer

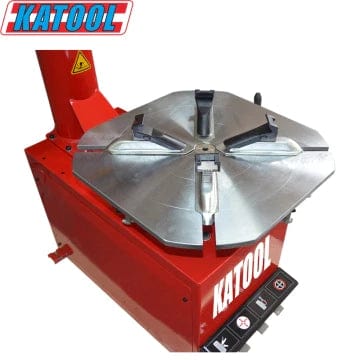

- Alloy steel jaws with 0.8–1.1mm carburized interface and full quench treatment for a tough exterior and resilient core; jaw covers included for rim protection
- Stainless steel mounting head with solution treatment and polished interface, engineered to conform to proper mounting geometry; plastic rim cover included

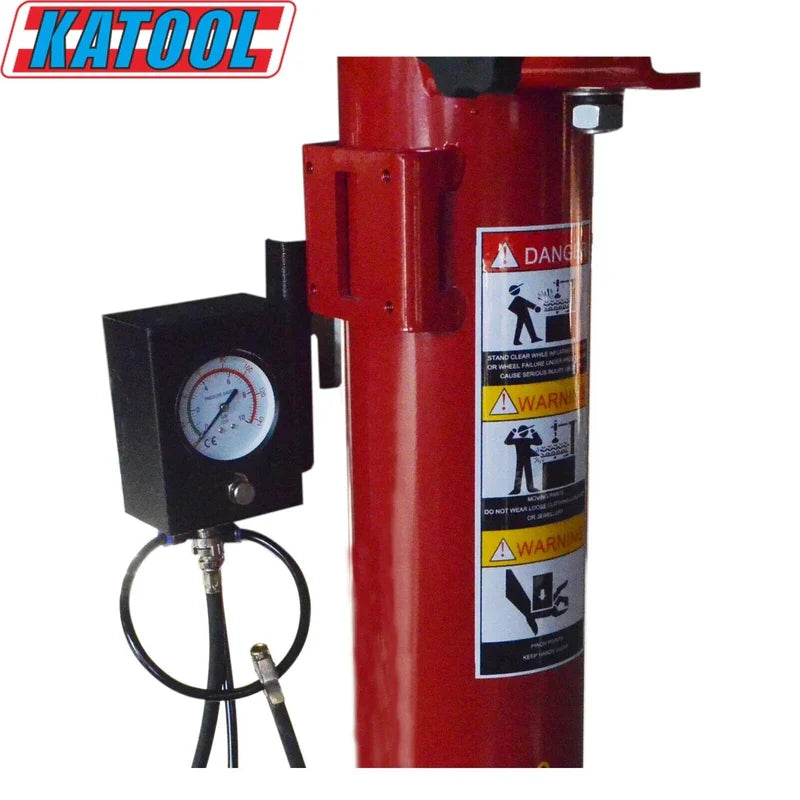

- Inflation gauge with pedal control for convenient, hands-free inflation
- High-quality spade cover effectively prevents rim damage during operation
- Pull-type pedal control system for easy tire changing and straightforward maintenance access

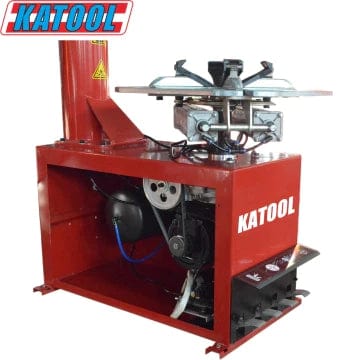

- Top-grade motor with pure copper windings for greater power, fast heat dissipation, low defect rate, and extended service life
- High-quality lubricator ensures reliable oil separation and effective compressed air filtration for longer pneumatic system life
- Double-sided assist arm for enhanced tire mounting support
- Bead blast seater head with post tank for powerful, reliable bead seating
- 186mm (7.32") stainless steel bead breaker cylinder for heavy-duty breaking performance
- Enclosed body design protects internal components from shop debris and damage
- 110V / 1PH / 2.0 HP motor configured for North American use, delivering maximum power and high-efficiency performance

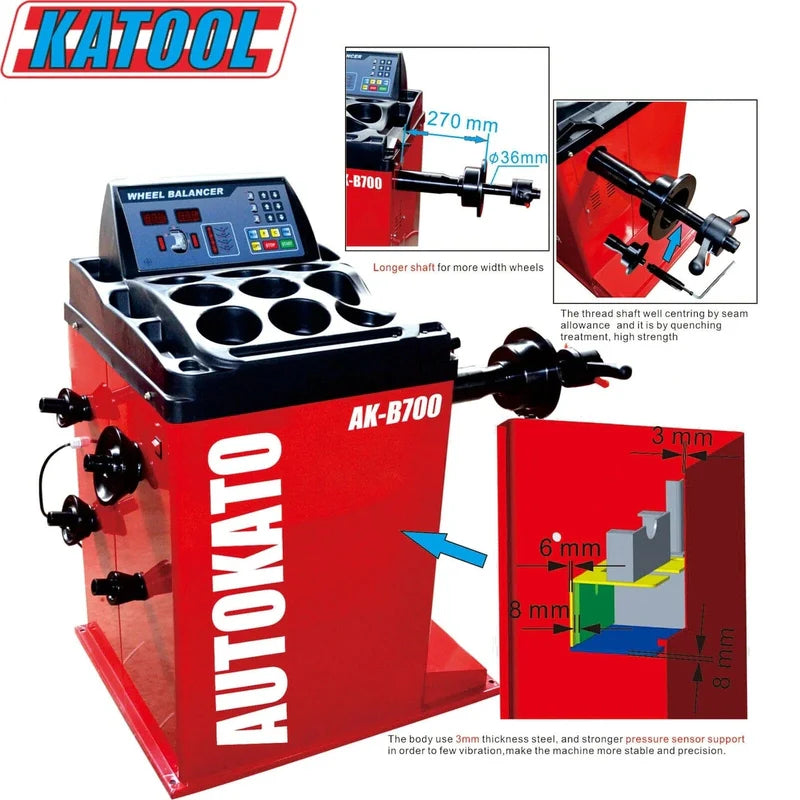

KT-B700 Wheel Balancer — Features
- Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
- All-in-one pressure sensor mounted on 8mm thick base and side boards for stable, high-precision readings
- Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life

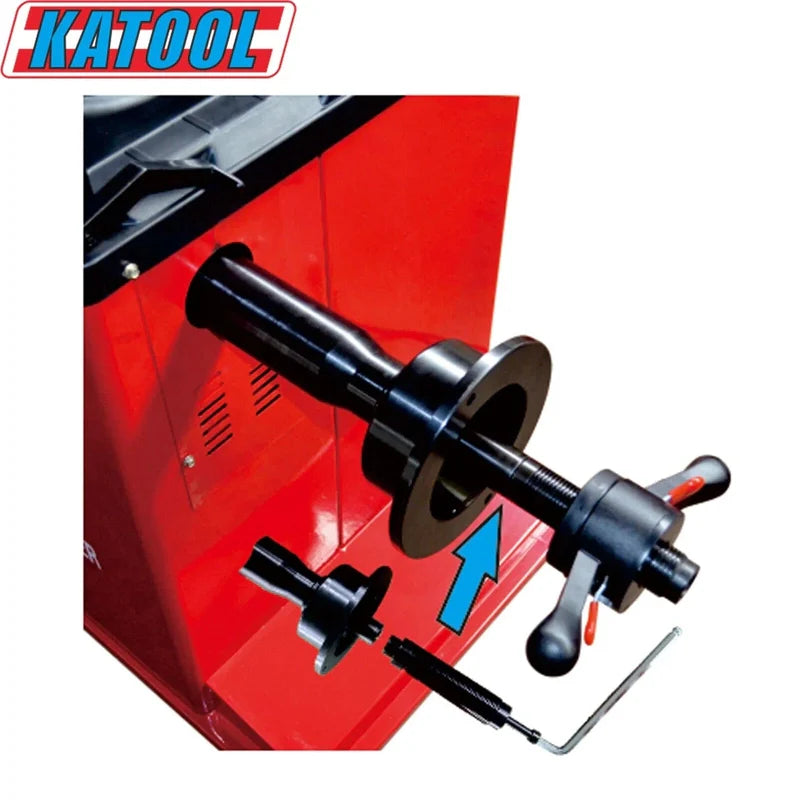

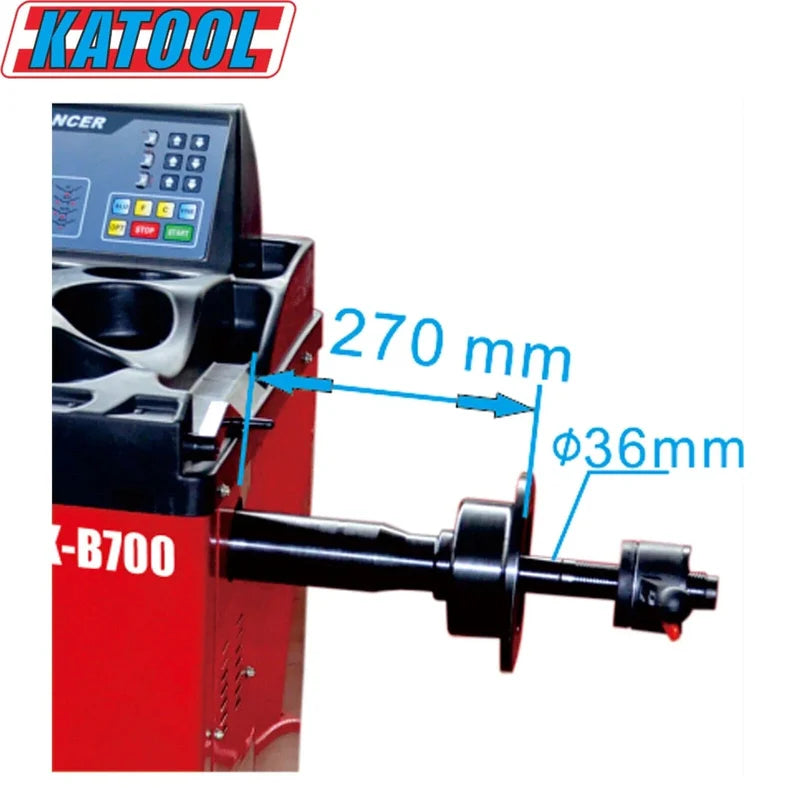

- φ36mm quench-hardened shaft thread for superior strength and durability
- Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
- Multiple balance modes tailored to different rim types for precise, accurate balancing
- Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
- Selectable units for Ounce/Gram and MM/Inch measurements
- High-quality integrated power board ensures stable, consistent performance
- Extended shaft accommodates wider wheels
- Optional wheel guard available
Specifications

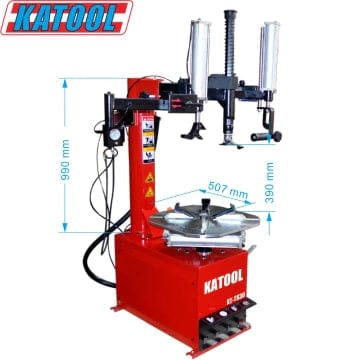

KT-T830 Wheel Clamp Tire Changer Machine
| Max Wheel Diameter: |
41"/1040mm |
| Max Wheel Width: |
15"/380mm |
| Outside Clamp: |
12"-22" |
| Inside Clamp: |
14"-24" |
| Power Supply: |
120V 1PH |
| Motor Power: |
2.0HP/1.5KW |
| Rotation Speed: |
6.8r/min |
| Air Pressure: |
0.8-1.0Mpa (116-145psi) |
| Net weight: |
240KG/529lbs |
KT-B700 Wheel Balancer
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
120V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
1g |
| Measuring Time: |
7S |
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included
