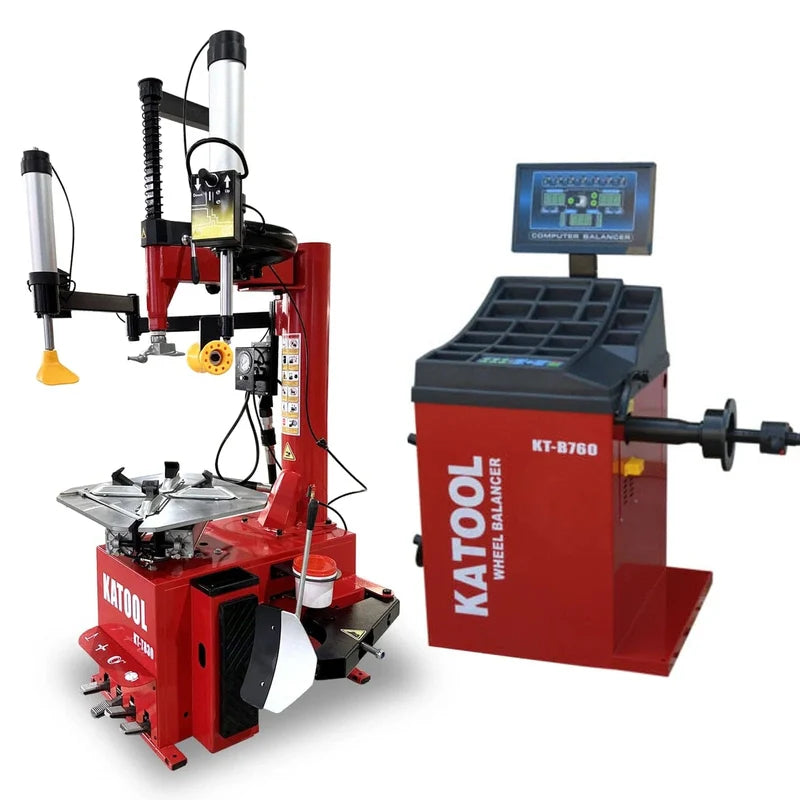

The Katool KT-T830 and KT-B760 is the top-spec 110V combo in the Katool tire changer lineup — the T830's run-flat and low-profile capability paired with the B760's automatic measurement balancer. The T830 runs on 110V/1-phase/2.0 HP and steps up from the T800 with a double-side assist arm, bead blast seater with post tank, and a 186mm (7.32") stainless steel bead breaker cylinder — the three additions that handle stiff, heavy, and run-flat tires that a standard wheel clamp changer struggles with. The B760 adds an automatic measurement ruler that inputs A and D values without manual entry, cutting per-wheel setup time on the balancer. Both machines run pure copper-wound motors for faster heat dissipation and longer service life under continuous shop use.
The T830 carries the full construction spec shared across the line: alloy steel jaw carburized to 0.8–1.1mm depth and through-hardened, stainless steel mounting head with solution treatment and interface polishing, and plastic rim protectors on both contact surfaces. The double-side assist arm supports the tire from both sides during demounting and mounting — the feature that makes run-flat and low-profile work manageable for one technician. A high-quality lubricator filters and conditions compressed air through the pneumatic circuit, and the closed body design protects internal components from shop debris. The B760 delivers the full balancer spec: 3mm steel body with 8mm sensor mounting boards for vibration isolation, quench-hardened φ36mm shaft for heavier wheels, and self-calibration with fault diagnosis requiring no pre-set parameters. A longer shaft and optional wheel guard are available for wider fitments.
This is the combo for high-volume independent tire shops and dealership service bays on 110V service that see a consistent mix of run-flat, low-profile, and standard tires and need both machines performing at the top of their class. If the bay processes enough wheels daily that balancer setup time adds up, and difficult tires are a regular occurrence rather than an exception, the T830/B760 is the 110V configuration that doesn't require any workarounds.
Features

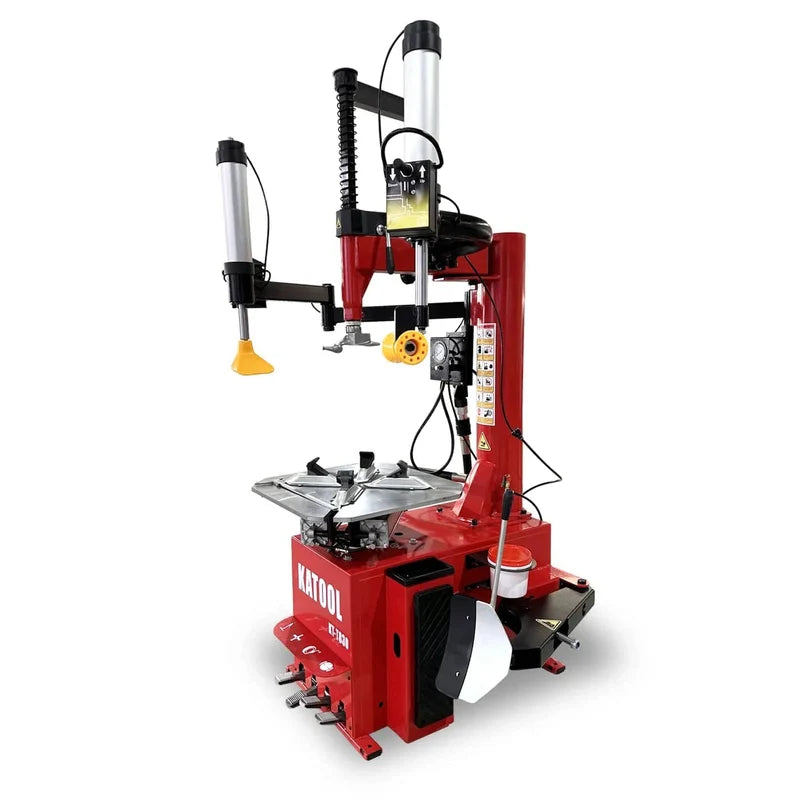

KT-T830 Tire Changer
- Alloy steel jaws with 0.8–1.1mm carburized interface and full quench treatment for a tough exterior and resilient core; jaw covers included for rim protection
- Stainless steel mounting head with solution treatment and polished interface, engineered to conform to proper mounting geometry; plastic rim cover included

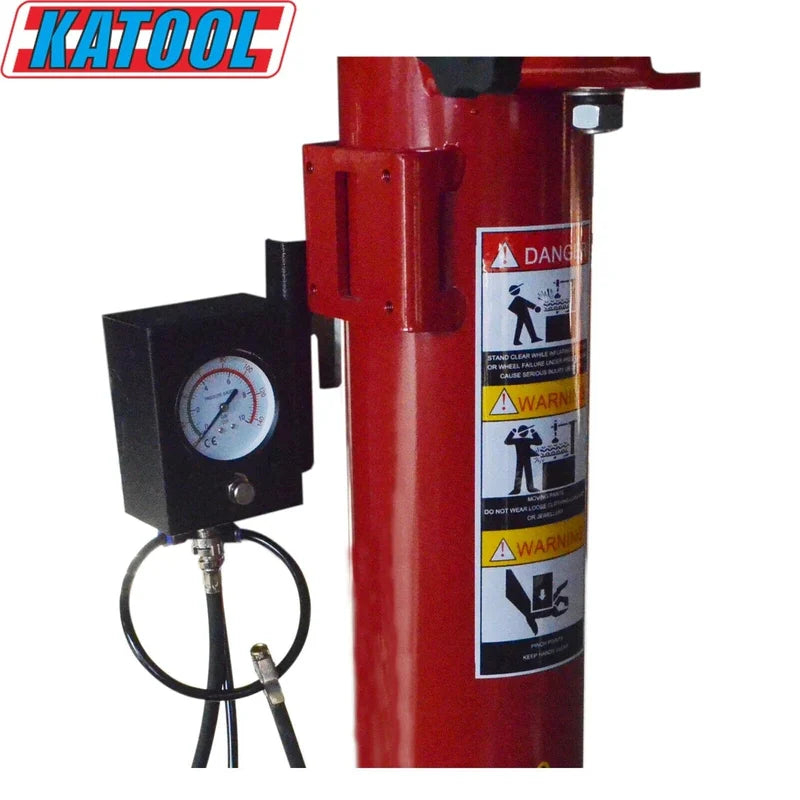

- Inflation gauge with pedal control for convenient, hands-free inflation
- High-quality spade cover effectively prevents rim damage during operation

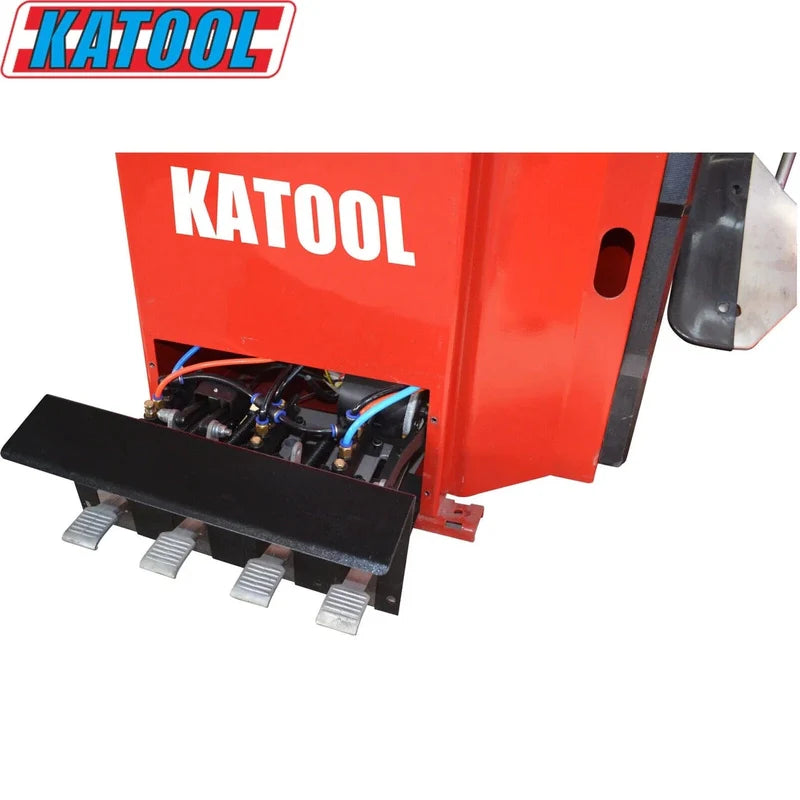

- Pull-type pedal control system for easy tire changing and straightforward maintenance access
- Top-grade motor with pure copper windings for greater power, fast heat dissipation, low defect rate, and extended service life
- High-quality lubricator ensures reliable oil separation and effective compressed air filtration for longer pneumatic system life
- Double-sided assist arm for enhanced tire mounting support
- Bead blast seater head with post tank for powerful, reliable bead seating
- 186mm (7.32") stainless steel bead breaker cylinder for heavy-duty breaking performance
- Enclosed body design protects internal components from shop debris and damage
- 110V / 1PH / 2.0 HP motor configured for North American use, delivering maximum power and high-efficiency performance
KT-B760 Wheel Balancer

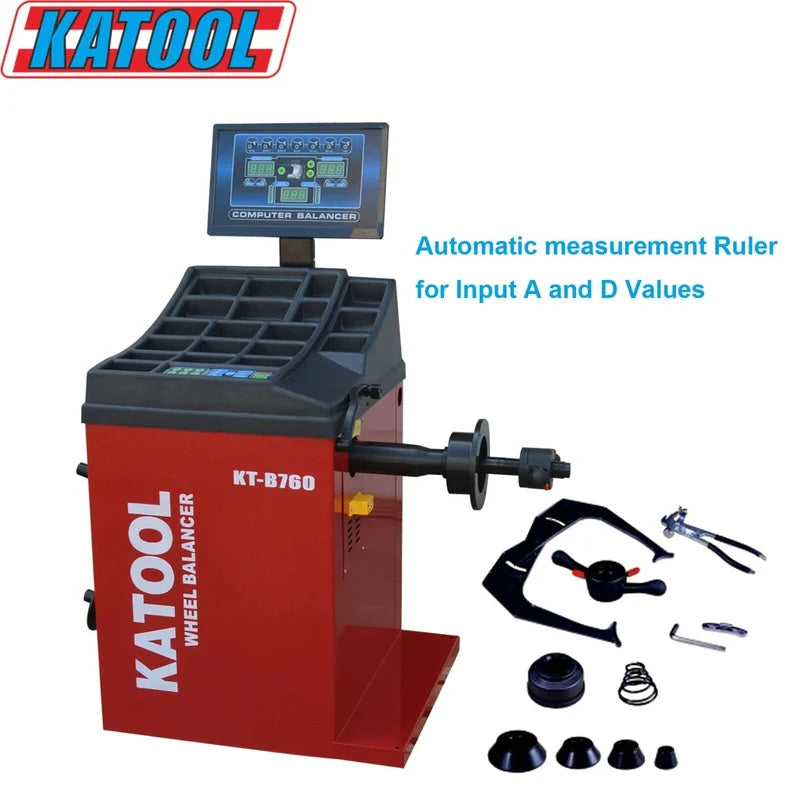

- Automatic measurement ruler for hands-free A and D value input
- Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
- All-in-one pressure sensor mounted on 8mm thick base and side boards for stable, high-precision readings
- Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life
- φ36mm quench-hardened shaft thread for superior strength and durability
- Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
- Multiple balance modes tailored to different rim types for precise, accurate balancing
- Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
- Selectable units for Ounce/Gram and MM/Inch measurements
- High-quality integrated power board ensures stable, consistent performance
- Extended shaft accommodates wider wheels
- Optional wheel guard available
Specifications
KT-T830 Wheel Clamp Tire Changer Machine
| Max Wheel Diameter: |
41"/1040mm |
| Max Wheel Width: |
15"/380mm |
| Outside Clamp: |
12"-22" |
| Inside Clamp: |
14"-24" |
| Power Supply: |
120V 1PH |
| Motor Power: |
2.0HP/1.5KW |
| Rotation Speed: |
6.8r/min |
| Air Pressure: |
0.8-1.0Mpa (116-145psi) |
| Net weight: |
240KG/529lbs |
KT-B760 Wheel Balancer
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
110V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
1g |
| Measuring Time: |
7S |
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included.
