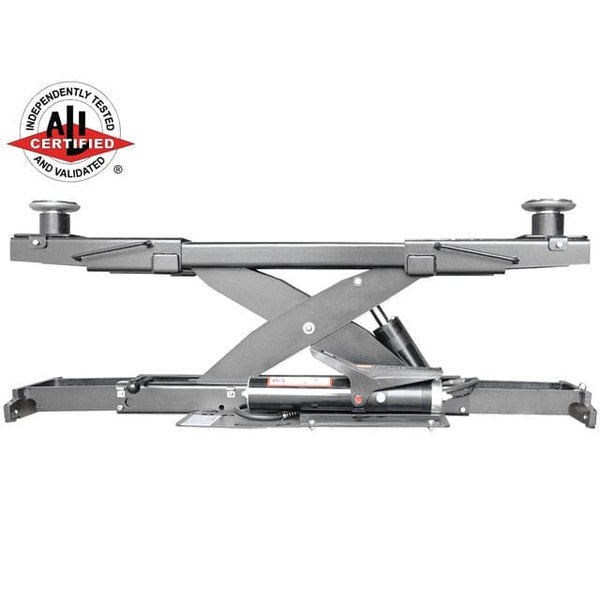

The Atlas® Platinum RJ7000 is a 7,000 lb. capacity air/hydraulic rolling bridge jack designed to expand the capabilities of compatible four-post lifts. Built to roll smoothly between lift runways, it allows technicians to raise a vehicle’s wheels off the runways for brake, suspension, tire, and wheel service without moving the vehicle to a different lift. As an ALI Certified accessory, the RJ7000 is specifically recommended for use with the Atlas Platinum PVL14 and PVL14OF-EXT lifts. Note: the jack requires a delivered air pressure between 70–115 PSI for proper operation.

The RJ7000 features expandable rail supports that adjust to fit a variety of four-post lift configurations, making it a versatile solution for shops operating multiple lifts. Its integrated roller system allows the jack to glide smoothly the full length of the runways, giving technicians flexibility to position the lifting pads exactly where they are needed. A scissor-style lifting mechanism keeps the vehicle level throughout the lifting process, while the included double screw-up adapters provide additional reach for trucks, SUVs, and other vehicles with higher lifting points.

This rolling bridge jack is an excellent addition for professional repair shops, alignment centers, dealerships, and fleet maintenance facilities that rely on four-post lifts for daily service work. The compact, low-profile design helps maximize workspace underneath the vehicle, while two built-in safety lock positions provide added confidence during repairs. Finished with a durable powder-coated surface and backed by a 1-year parts-only warranty, the RJ7000 adds wheel-free lifting capability to your four-post lift without sacrificing efficiency or bay space.

Features

• ALI certified accessory recommended for use with the Platinum PVL14 and Platinum PVL14OF-EXT lifts
• 7,000 lb. lifting capacity for wheel and suspension service applications
• Air/hydraulic operation for reliable lifting performance
• Two safety lock positions for secure operation
• Includes double screw-up adapters for added lifting versatility
• Compact, low-profile design for easy positioning between runways
• Smooth rolling action for convenient movement along the lift
• Scissor mechanism provides stable and level lifting
• Durable powder-coated finish for long-lasting protection
• Backed by a 1-year parts-only warranty

Specifications

Documents

Atlas® Platinum RJ7000 Manual

Rolling Jack Measuring Guide

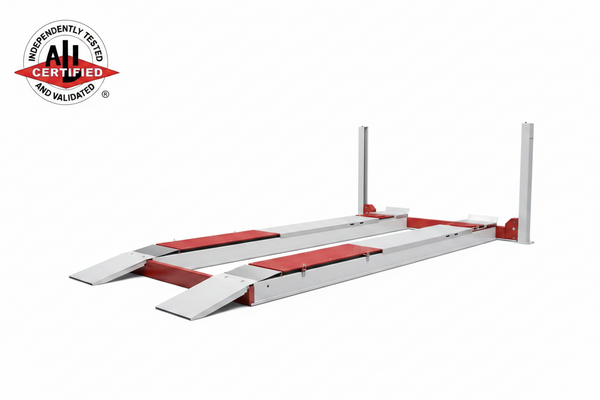

The Atlas Platinum Alignment Kit is an ALI Certified alignment accessory that bolts onto the Atlas Platinum PVL14 four-post lift — or other compatible commercial-grade four-post lifts — converting a standard service lift into a full alignment platform without purchasing a dedicated alignment rack. It includes heavy-duty ball-bearing slip plates, two heavy-duty turntables, and all necessary ramps and spacers for installation. Backed by a 1-year parts warranty. Delivery requires access for a 53-foot truck.

The design addresses the main maintenance problem with built-in alignment systems. Most permanent alignment kits are recessed into the lift runways, where dirt, road salt, chemicals, and debris pack into the turntable and slip plate mechanisms and are difficult to clear without dismantling the runway. The Atlas Platinum kit mounts above the runway surface rather than recessed into it, keeping the moving parts accessible for routine cleaning without special tooling. Even when permanently installed, the entire kit removes with standard bolts for a thorough periodic service of all moving components — a maintenance access point that flush-mount systems don't offer. The rear slip plate runs on 1-inch diameter steel roller bearings for smooth, consistent movement under load.

The Atlas Platinum Alignment Kit is the right fit for shops that already own a compatible four-post lift and want to add alignment capability without a second rack, service facilities that perform alignment work often enough to justify dedicated equipment but not often enough to dedicate a bay to a fixed alignment lift, and anyone who wants the serviceability advantage of an above-runway alignment system over the recessed designs found on most dedicated alignment lifts.

Features

• ALI certified accessory
• Includes slip plates and turntables
• 1" diameter steel roller bearings on rear slip plate for smooth, precise movement
• Removable and reinstallable as needed for flexible use
• Shipping weight: 1,000 lbs
• 1-year parts-only warranty

Specifications

Documents

Atlas Platinum Alignment Kit Manual
