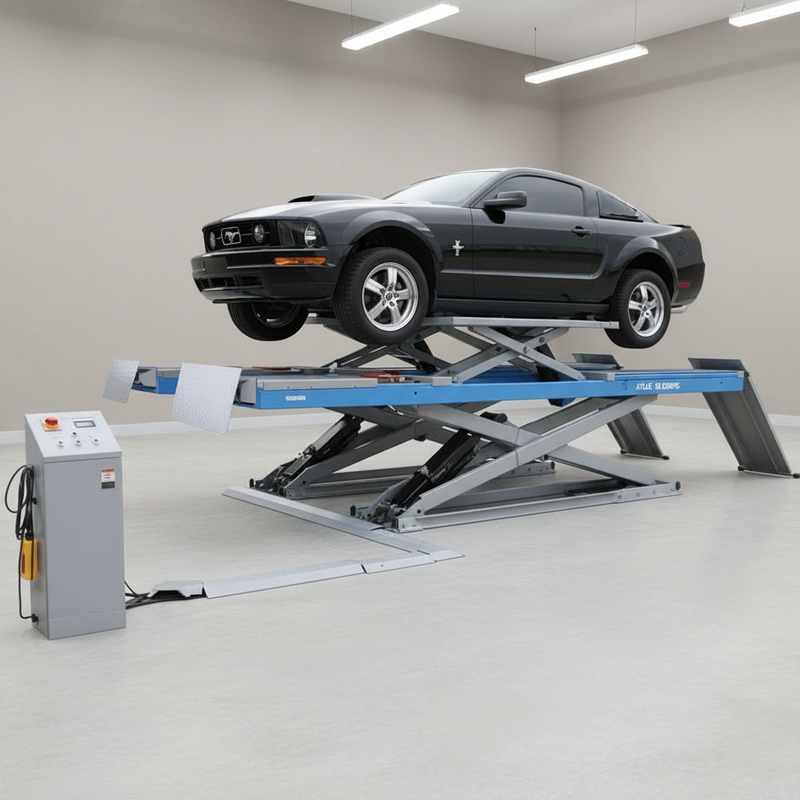

The Atlas 12AWFSL is a 12,000 lb. scissor alignment lift built around a joint Italian-Asian design — Italian engineering and structural design paired with cost-efficient manufacturing, resulting in a lift that competes directly with name-brand alignment equipment at a significantly lower price point. The built-in Wheels Free lifting system is what sets it apart: once a vehicle is loaded on the runways, the frame-contact jacks raise the vehicle until the wheels lift off the platforms, giving you unobstructed wheel access for alignment work without a separate lift or floor jacks. Note: requires 220V/1-phase power with a 30-amp breaker and an external air supply for the lock release system. Can be surface mounted or recessed flush with the floor.

The 12AWFSL is built for precision alignment work from the ground up. Built-in slip plates and alignment turntables are included, along with turntable covers, an airline kit, and a rear cross beam for added stability — no separate purchases to get the lift alignment-ready out of the box. The air-operated single-point lock release engages and disengages automatically as the lift raises and lowers, across 19 locking positions for precise working height. A safety lowering limit switch stops descent automatically at 10 inches from the floor, requiring a deliberate second input to complete the lowering cycle. Extra-long 72" ramps handle vehicles from compact foreign cars through one-ton dually trucks, and welded interior runway rails accept a rolling jack such as the Atlas RJ-6. The separate self-contained control panel can be positioned wherever it's most accessible, and an emergency manual pump allows lowering if power is lost.

The 12AWFSL is a practical fit for independent alignment and repair shops that need a full-featured alignment lift without the price premium of major brands, dealership service departments adding alignment capability, and multi-bay facilities where floor space is limited and a flush-mount installation keeps the shop floor clean and accessible.

Features

• 12,000 lb. Lift Capacity — Commercial-grade lifting power engineered to handle a wide range of passenger vehicles and light commercial applications.
• Scissor Alignment Lift — Purpose-built scissor design provides stable, precise vehicle positioning for professional wheel alignment service.
• Built-In Wheel-Free Lifting System — Integrated wheel-free system allows for accurate alignment measurements without the need for additional equipment.
• Built-In Slip Plates & Alignment Turntables — Factory-installed slip plates and turntables are included for a complete, ready-to-use alignment setup straight out of the box.
• Turntable Covers Included — Protective turntable covers maintain surface condition and extend the lifespan of the alignment components.
• Open Center Design — Wide-open center structure provides easy, unobstructed technician access beneath the vehicle throughout the service process.
• Air-Operated Single Point Lock Release — Convenient single-point pneumatic lock release simplifies operation. Note: external air supply required.
• Airline Kit Included — Complete airline kit is included for a straightforward, hassle-free installation.
• Rear Cross Beam — Included rear cross beam provides additional structural stability and rigidity during operation.
• Extra-Long 72" Ramps — Extended 72-inch drive-up ramps accommodate a wider range of vehicle wheelbases for easier loading and positioning.
• Precise Platform Leveling — High-accuracy platform leveling ensures a consistently flat, stable surface for reliable alignment results.
• Separate Self-Contained Control Panel — Independent control panel offers a clean, organized workspace and intuitive lift operation.
• Emergency Manual Pump — Built-in manual pump allows for safe, controlled platform lowering in the event of a power failure.
• 19 Locking Positions — Multiple locking positions provide flexible working heights to accommodate a variety of vehicle types and service tasks.
• CE Certified — Meets rigorous CE safety and performance standards for professional workshop use.
• Surface Mount or Flush Mount Installation — Versatile mounting options accommodate a wide range of shop floor configurations and installation preferences. Mounting hardware included.
• 220V / 1-Phase Electric Operation — Requires a dedicated 30-amp breaker for safe and reliable power delivery.
• Shipping Weight: 5,000 lb.
• Warranty — Includes a two-year structural warranty and a one-year hydraulic warranty covering parts only.

Specifications
