Atlas 12ASL 12,000 lb Scissor Alignment Lift

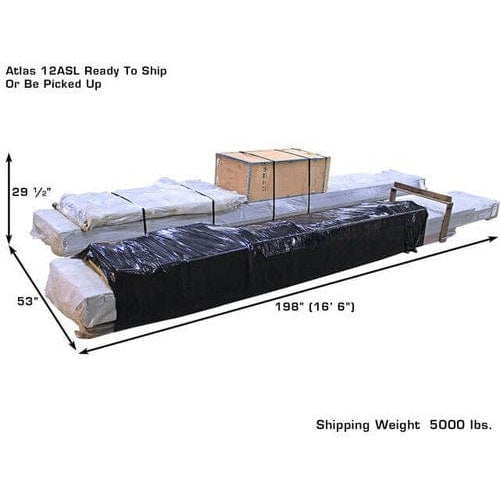

The Atlas 12ASL is a 12,000 lb scissor alignment lift built for shops that need full wheel alignment capability — built-in slip plates, alignment turntables, and turntable covers are all included as standard, not sold separately. It installs either surface-mounted or flush-mounted (flush mounting requires separately purchased short ramps), runs on 220V single-phase power with a 30-amp breaker, and requires an external compressed air supply for the air-actuated single-point lock release system. The lift ships at approximately 5,000 lbs and requires delivery access for a 53-foot truck. Backed by a 2-year structural and 1-year hydraulic parts warranty.

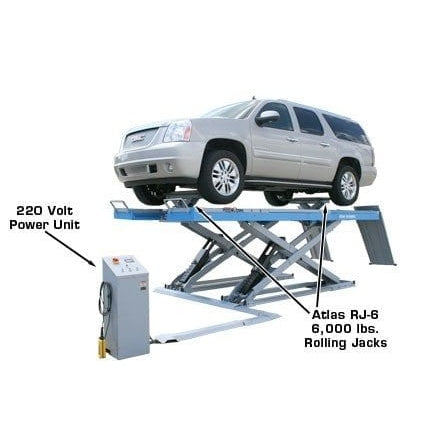

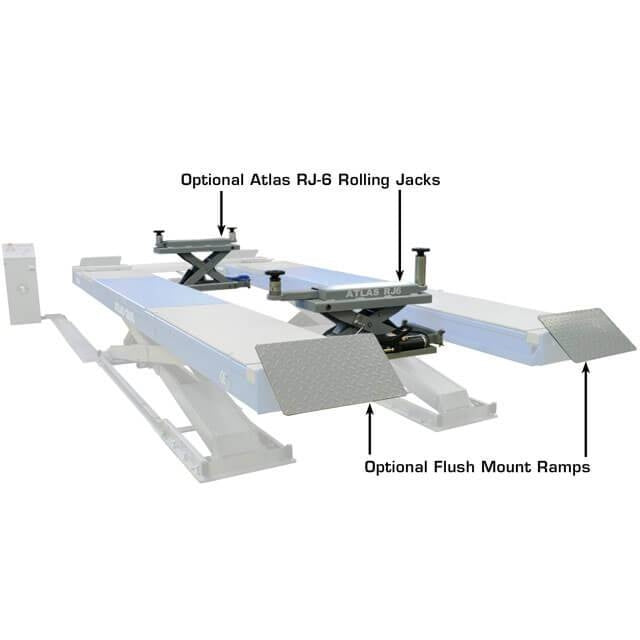

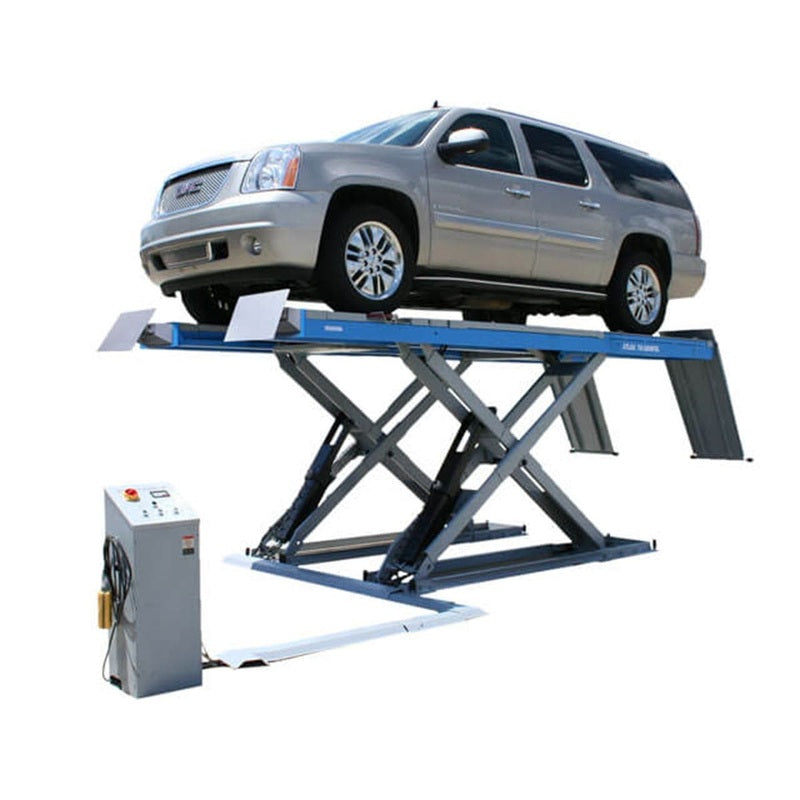

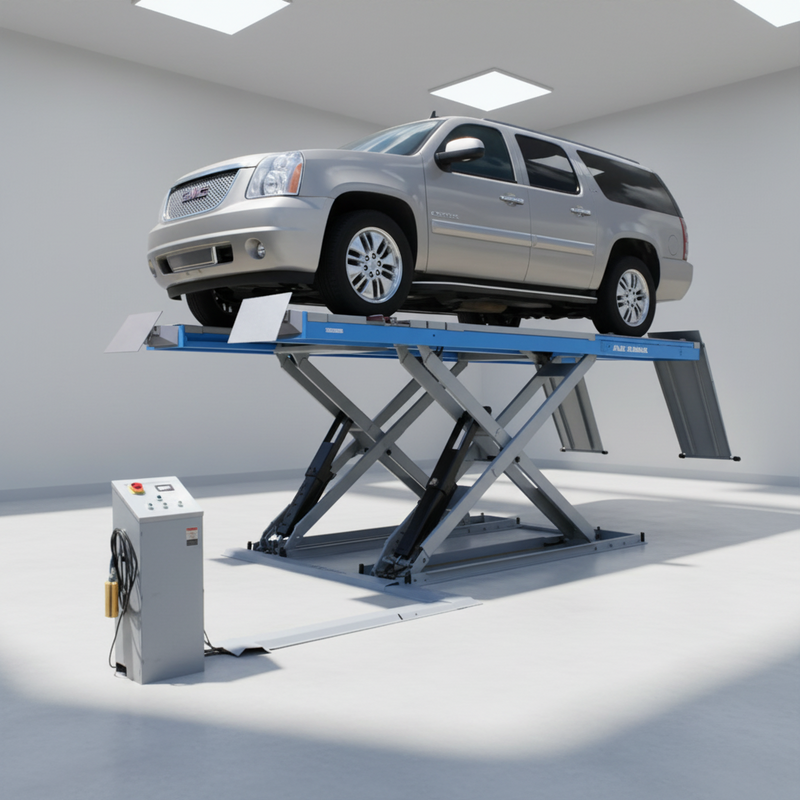

The separate self-contained control panel positions independently of the lift, letting the operator stand clear during raising and lowering. Push-button controls handle all movement, and the air-actuated lock system engages and disengages automatically as the lift travels — no manual lock intervention mid-cycle. 19 locking positions give the technician precise working height options across the full travel range. A safety lowering limit switch stops descent automatically when the platforms reach within 10 inches of the floor, requiring a deliberate second input to complete the final lowering — a safeguard against unintended contact with floor equipment. An emergency manual pump provides lowering capability if the power circuit fails. Welded internal runway rails accept a rolling jack (such as the Atlas RJ-6) for suspension unloading during alignment work, and 72-inch ramps are included as standard for easy vehicle loading.

The 12ASL is built for alignment shops, full-service independent repair facilities, and dealerships that need a commercial-grade scissor alignment lift with all the alignment tooling included, and for shops working in constrained floor space where a scissor format is preferable to a drive-through four-post alignment rack.

Features

• 12,000 lb lifting capacity
• Commercial-grade scissor alignment lift

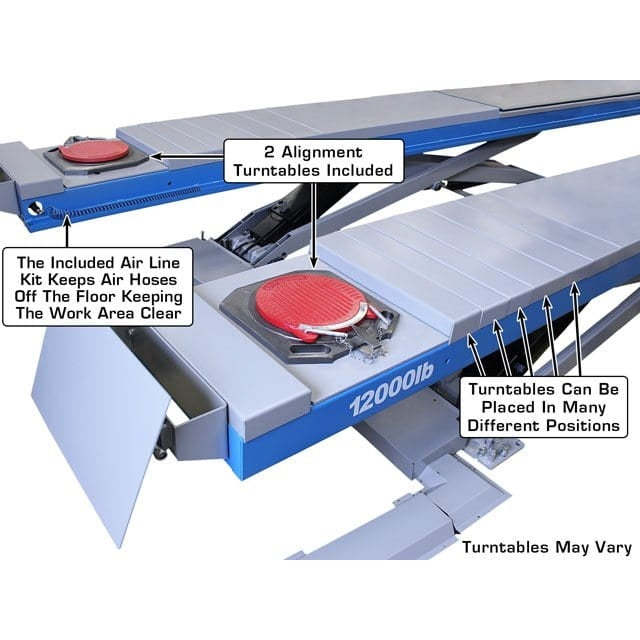

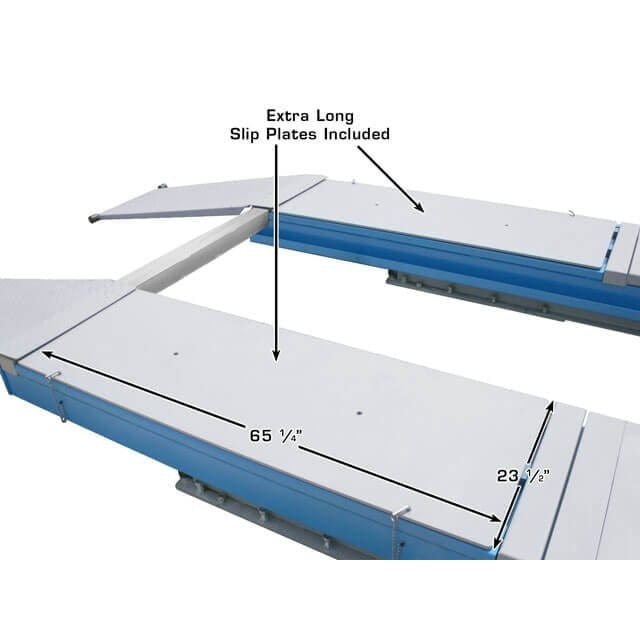

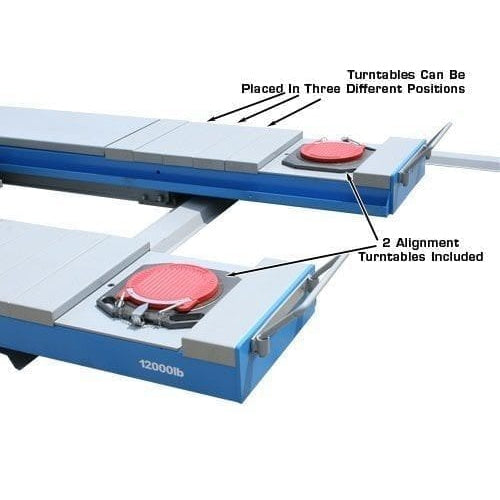

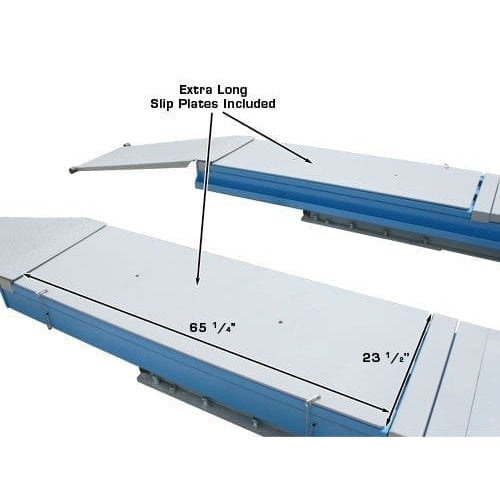

• Built-in slip plates and alignment turntables included

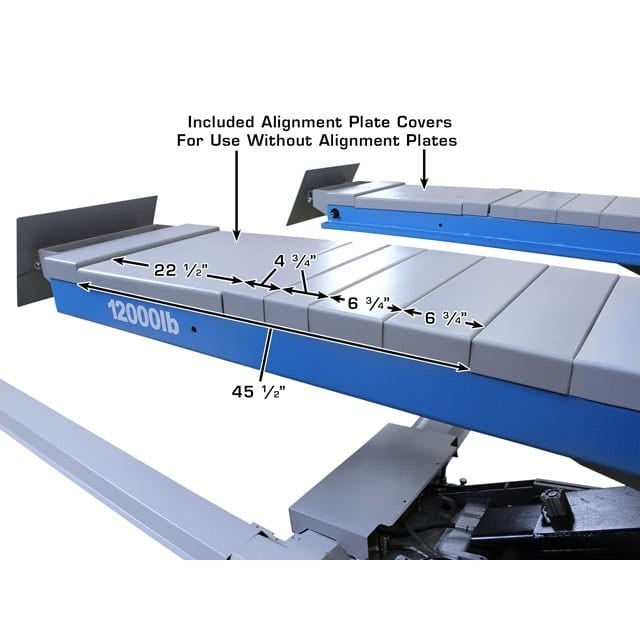

• Turntable covers included
• Open center design for easy undercarriage access

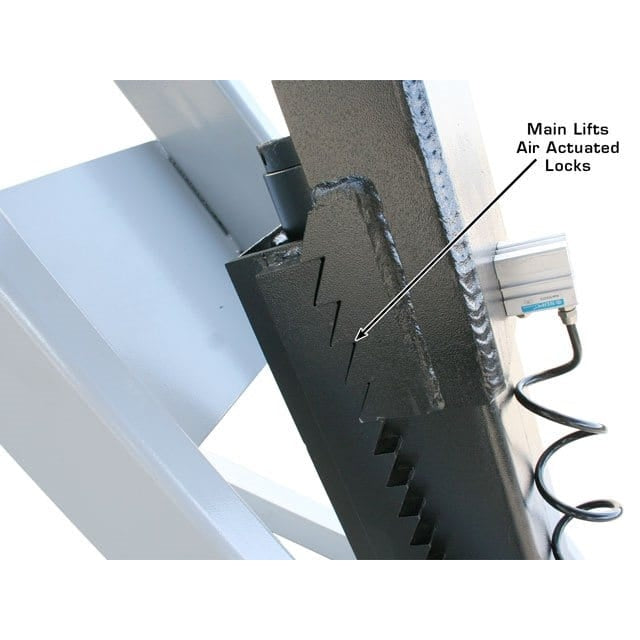

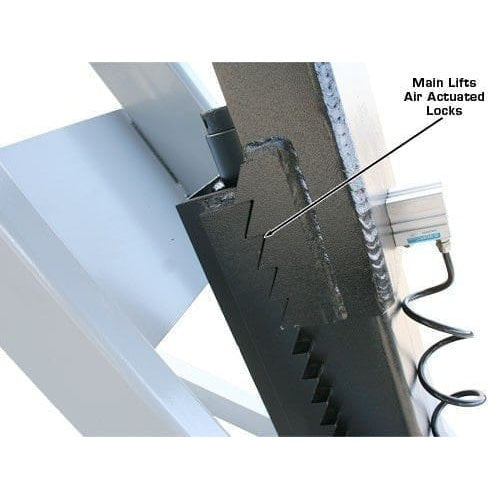

• Air-operated single-point lock release (external air supply required)

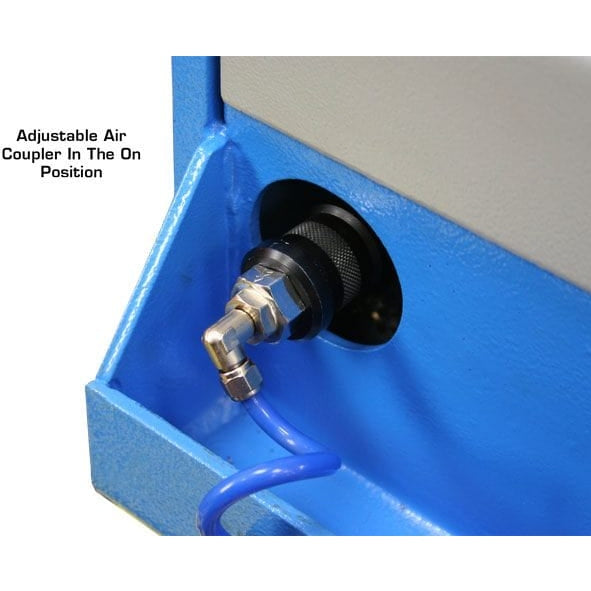

• Airline kit included

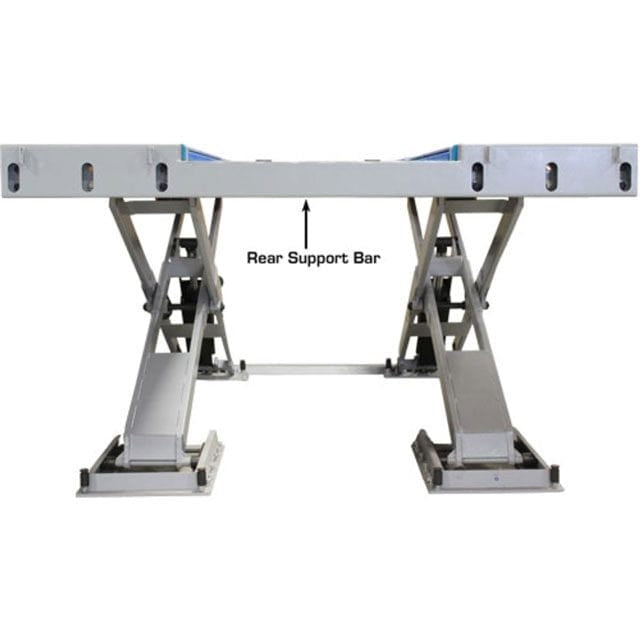

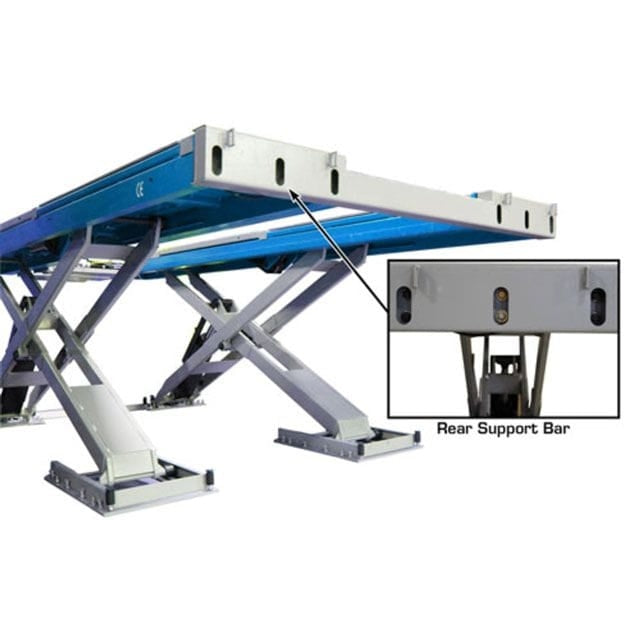

• Rear cross beam included for added stability
• Extra-long 72" ramps standard
• Precise platform leveling accuracy
• Separate self-contained control panel
• Emergency manual pump for safe lowering

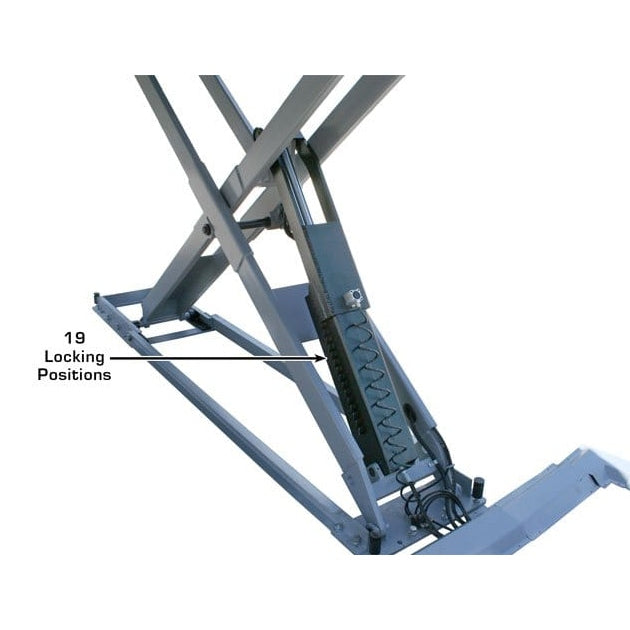

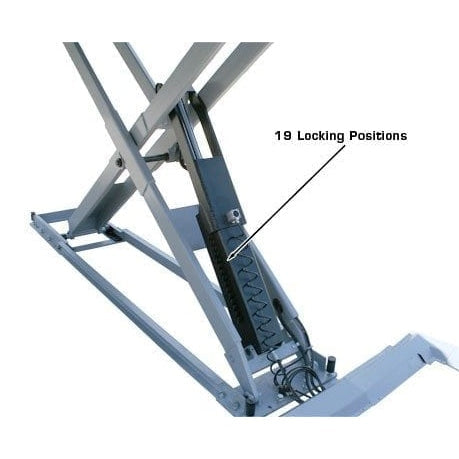

• 19 locking positions
• CE certified
• Surface mount or flush mount installation options

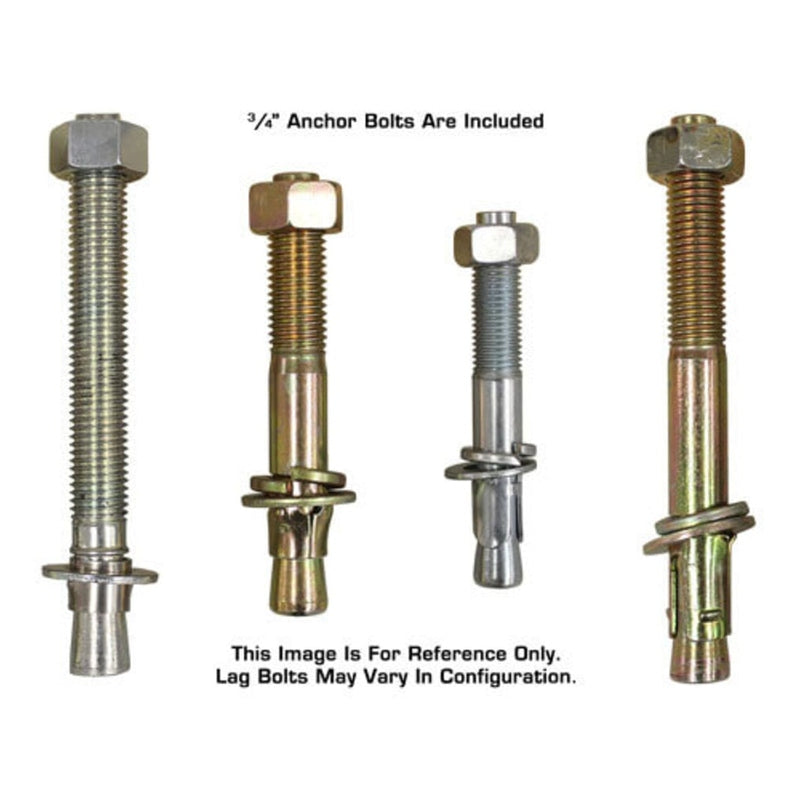

• Mounting hardware included

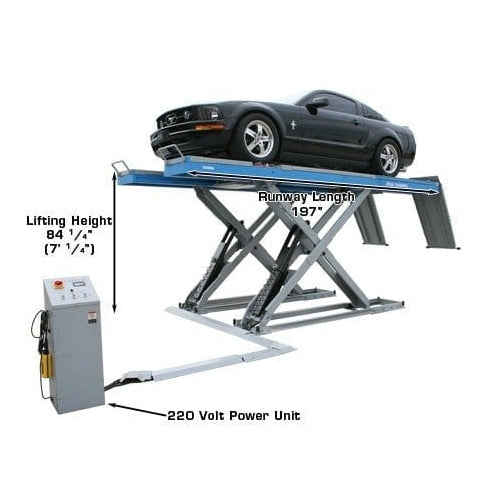

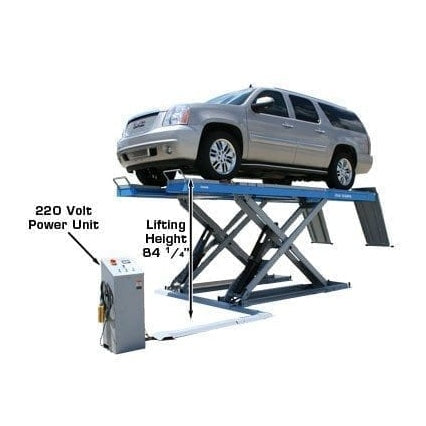

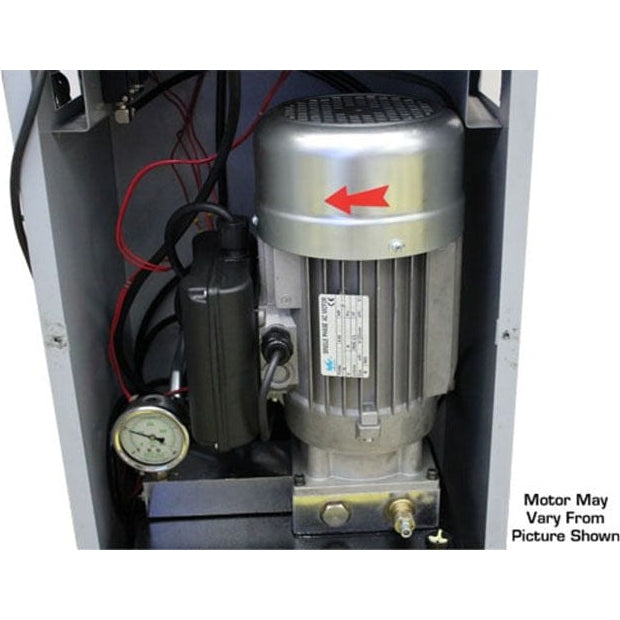

• 220V / 1-phase electric operation (requires a 30-amp breaker)

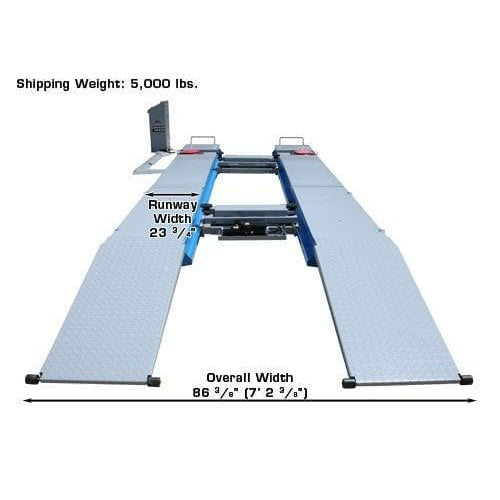

• Shipping weight: 5,000 lbs
• 2-year structural / 1-year hydraulic parts-only warranty
