The Atlas 12ASL and RJ-6 is a 12,000 lb scissor alignment lift bundled with a 6,000 lb air/hydraulic rolling jack — everything needed to perform full wheel alignments and suspension work on a single integrated platform. The 12ASL includes built-in slip plates, alignment turntables, and turntable covers as standard, and the RJ-6 rolling jack rides the 12ASL's welded internal runway rails, giving the technician a mobile lift point under the vehicle without moving it off the alignment rack. The 12ASL installs surface-mounted or flush-mounted, runs on 220V single-phase power with a 30-amp breaker, and requires an external compressed air supply for both the lift's air-actuated lock release and the RJ-6's air/hydraulic operation (70–105 PSI delivered pressure). Delivery requires access for a 53-foot truck.
The 12ASL's separate self-contained control panel positions independently for operator clearance, with push-button raising and lowering and an air-actuated lock that engages and disengages automatically during travel. 19 locking positions cover the full height range, a safety lowering limit switch stops descent at 10 inches above the floor requiring a deliberate second input to complete, and an emergency manual pump provides lowering capability if power is lost. 72-inch approach ramps handle low-clearance vehicles, and the open center design gives clear undercarriage access across the full platform width. The RJ-6 adds a scissor-mechanism level lift with multiple safety lock positions, double screw-up adapters, and a 4-piece truck adapter set — compact enough to maneuver between the runways and low-profile enough to slide under vehicles already on the rack. Backed by a 2-year structural and 1-year hydraulic parts warranty on the lift, and a 1-year parts warranty on the rolling jack.
The 12ASL/RJ-6 bundle is the right fit for dedicated alignment shops that want a complete rack-and-jack setup without sourcing components separately, full-service independent facilities adding alignment capability to an existing service menu, and high-volume shops where the rolling jack's runway integration keeps suspension and alignment work on one lift from start to finish.
Features

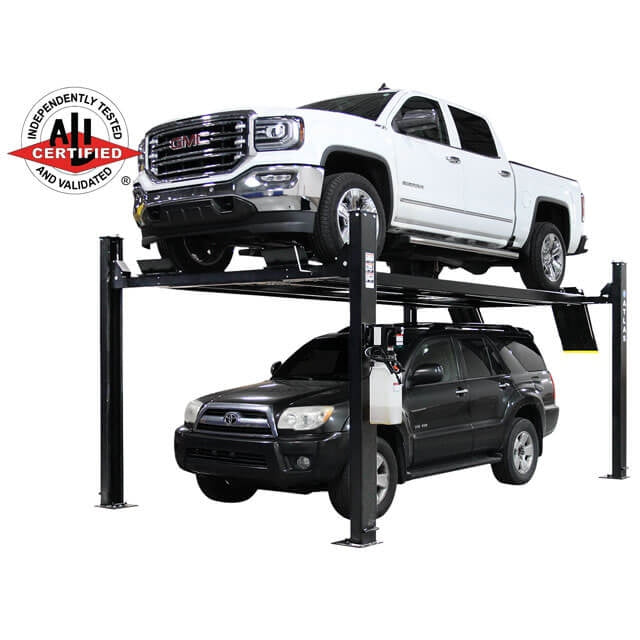

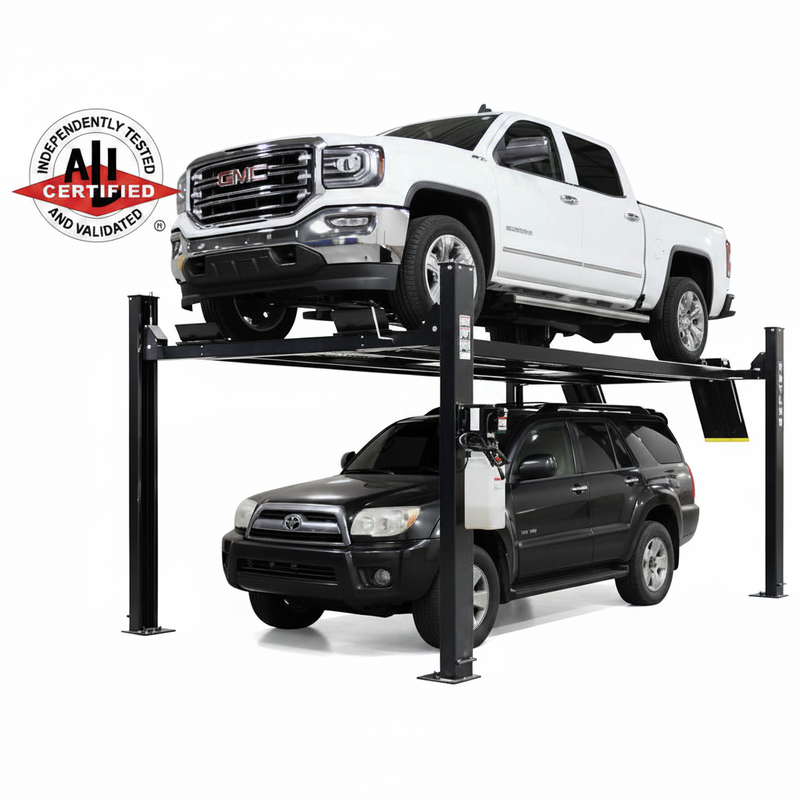

- ALI certified
- 9,000 lb lifting capacity
- Free-standing, portable design for flexible shop placement
- Heavy-duty, extra tall, extra wide, and extra long platform
- Durable powder-coat finish with diamond plate runways

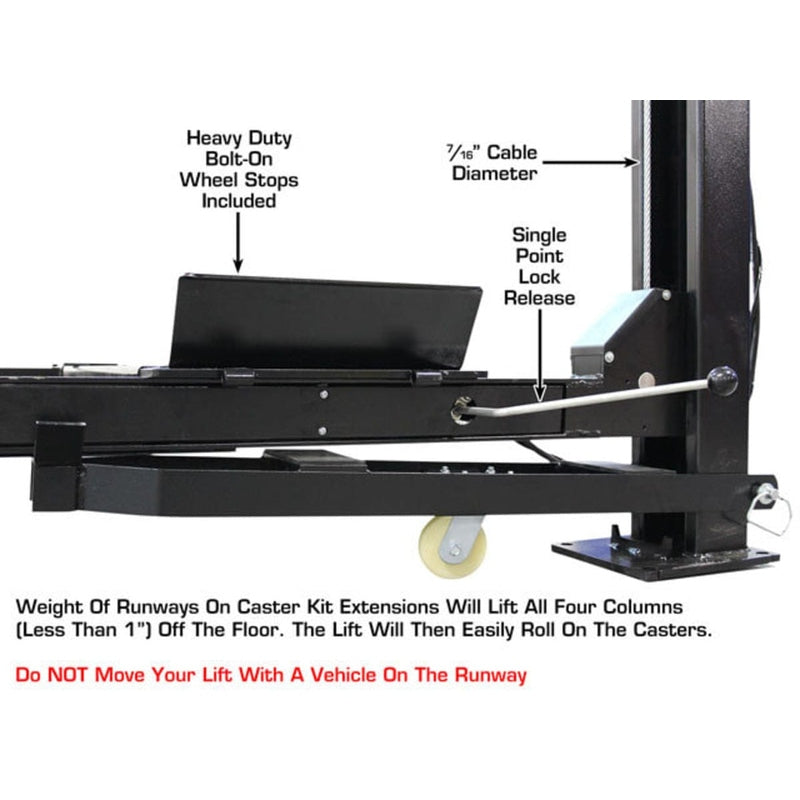

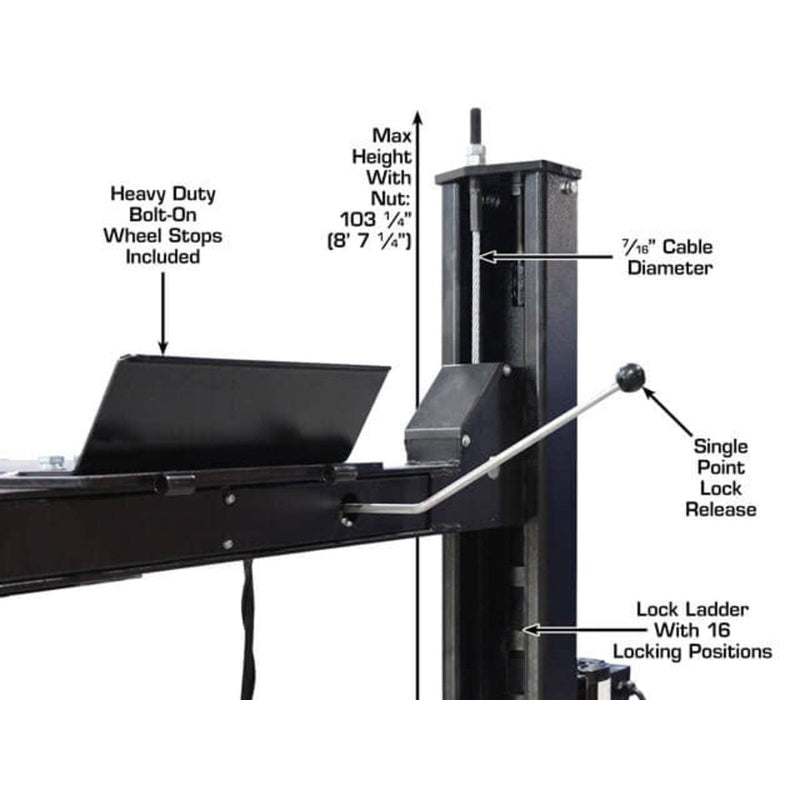

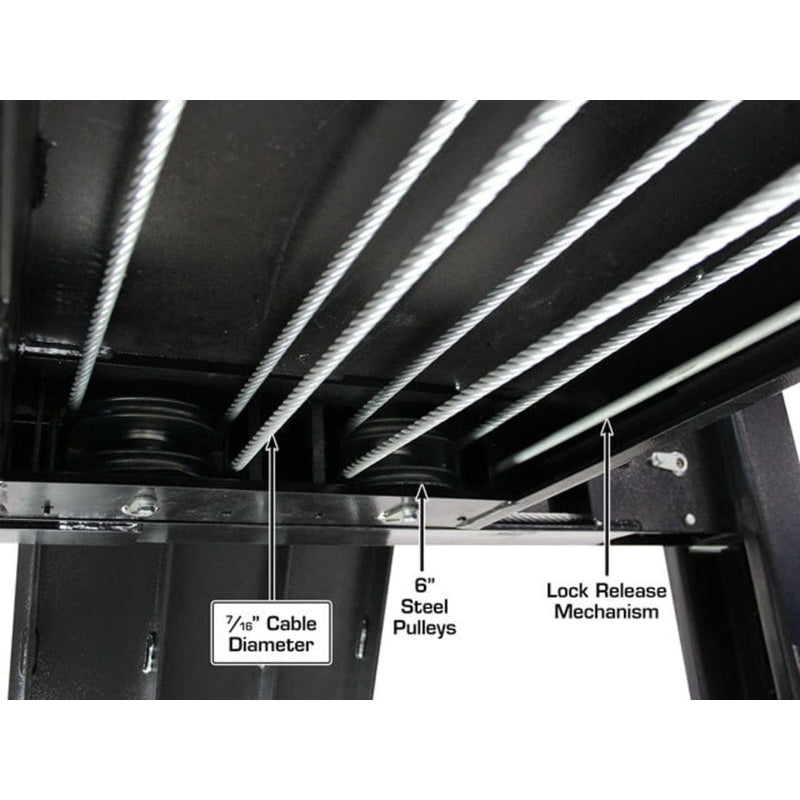

- Single-point lock release with lock ladder design and double lock safety system
- Steel approach ramps included
- Steel jack tray included
- Four plastic drip trays included

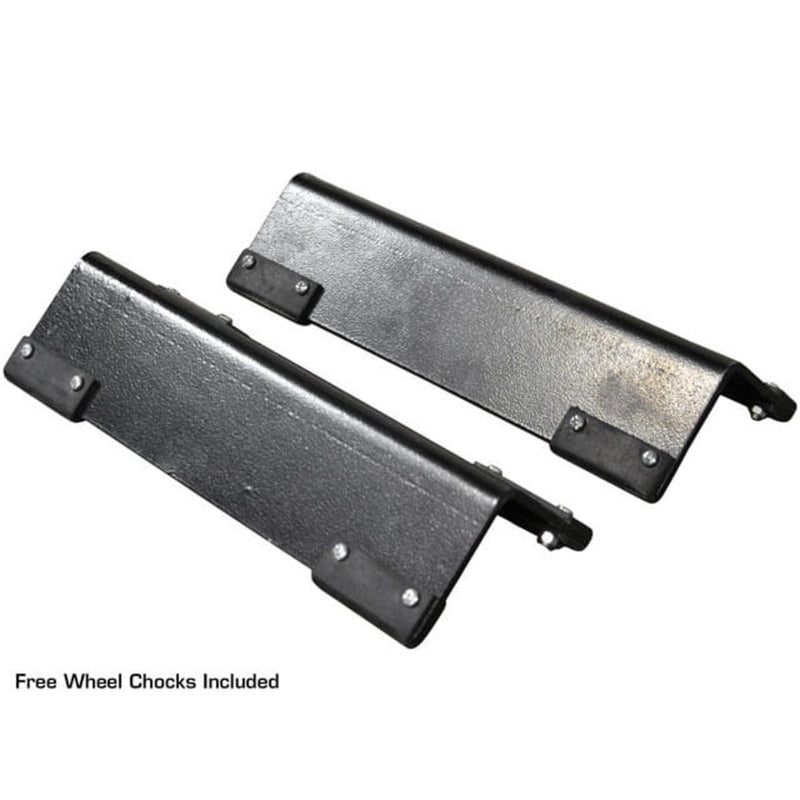

- Two wheel chocks included

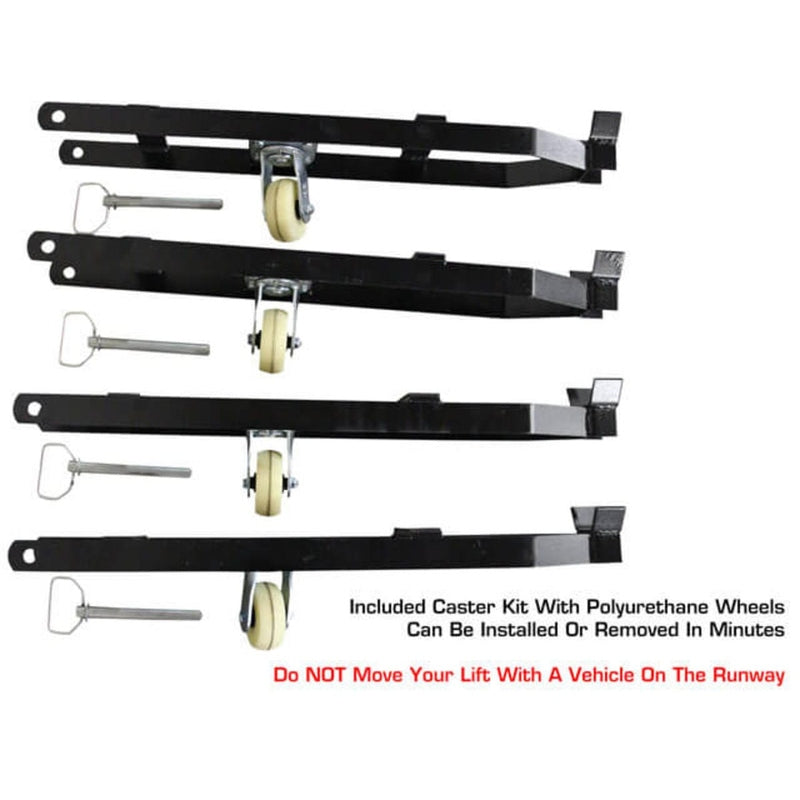

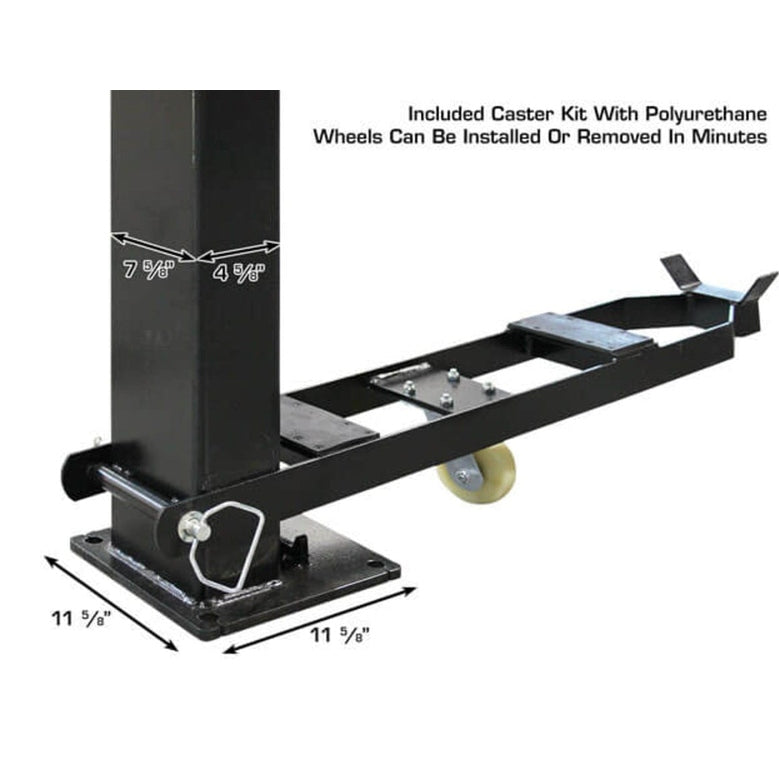

- Caster kit with polyurethane wheels available
- Anchor bolts optional (sold separately)
- Ideal for both vehicle storage and active service work

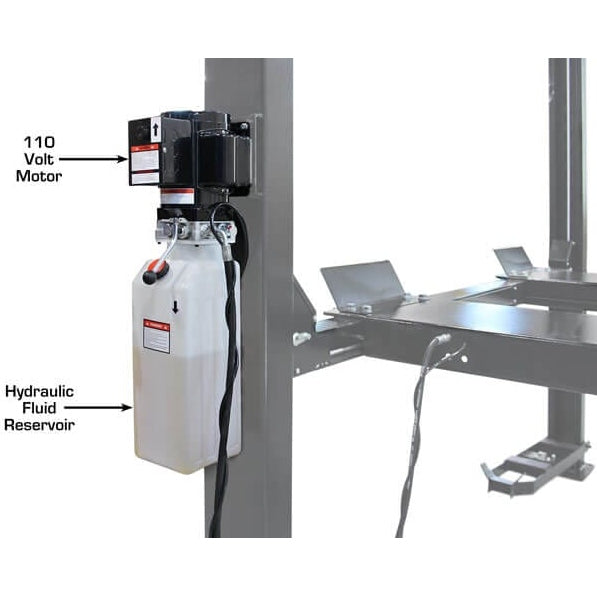

- 110V electric operation (requires a 30-amp breaker)

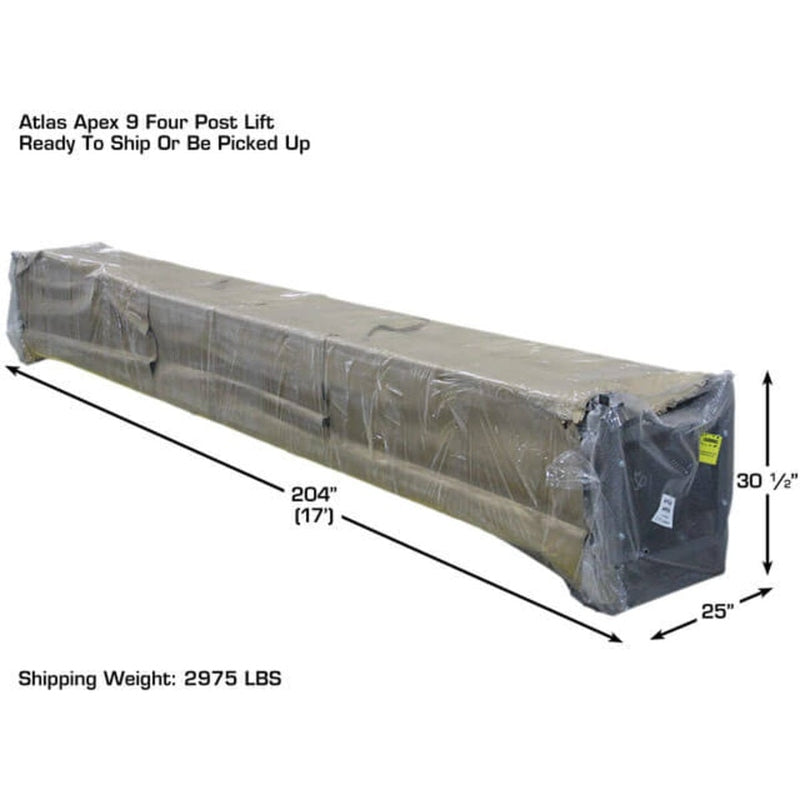

- Shipping weight: 2,975 lbs
- 5-year structural / 2-year hydraulic parts-only warranty
Specifications
| Capacity |
9,000 lb. |

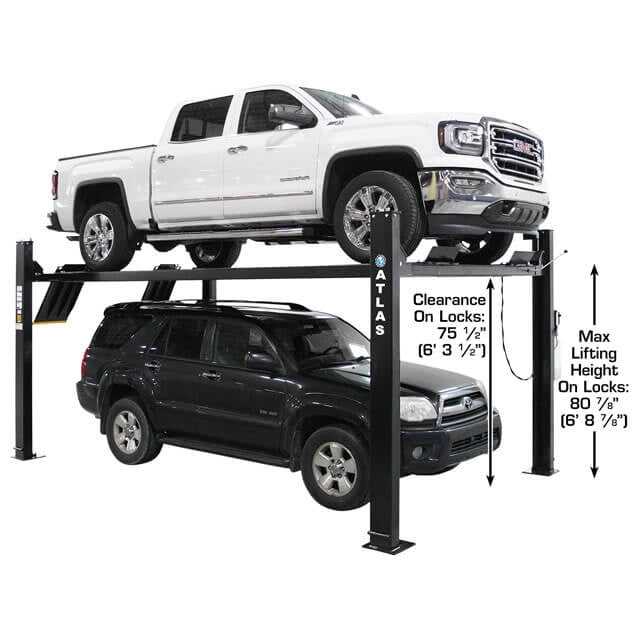

| Lifting Height To Top of Runway |
86" (7' 2") |

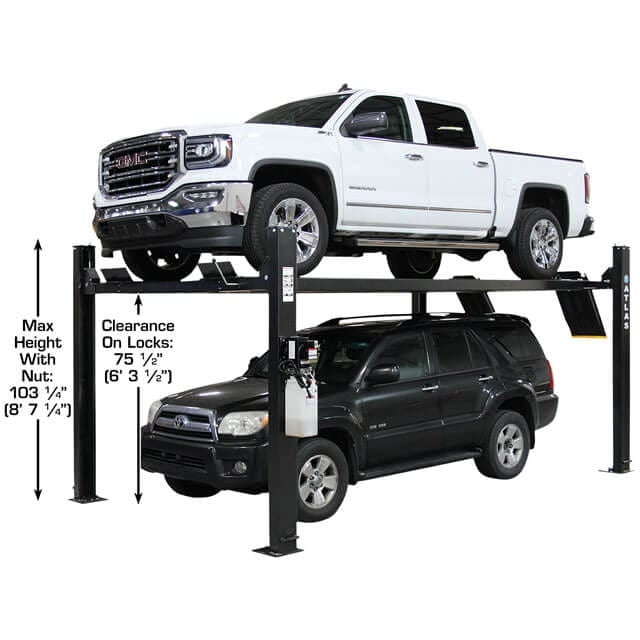

| Clearance Under Runways |
81 1/4" (6' 9 1/4") |
| Height of Columns |
99" (8' 3") |

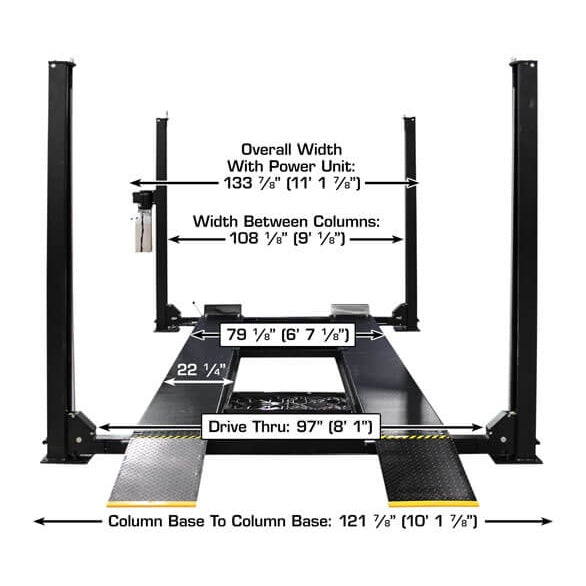

| Overall Width (Without Motor or Casters) |
121 7/8" (10' 1 7/8") |
| Overall Width (With Motor) |
133 7/8" (11' 1 7/8") |
| Overall Length without Approach Ramps (Including Lock Release Bar) |
204" (17") |
| Overall Length with Approach Ramps |
227 1/2" (18' 11 1/2") |

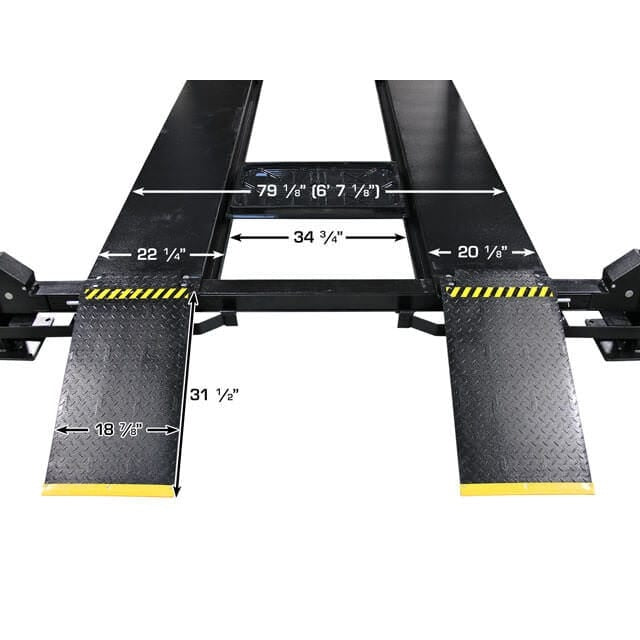

| Approach Ramps |
31 1/2" |

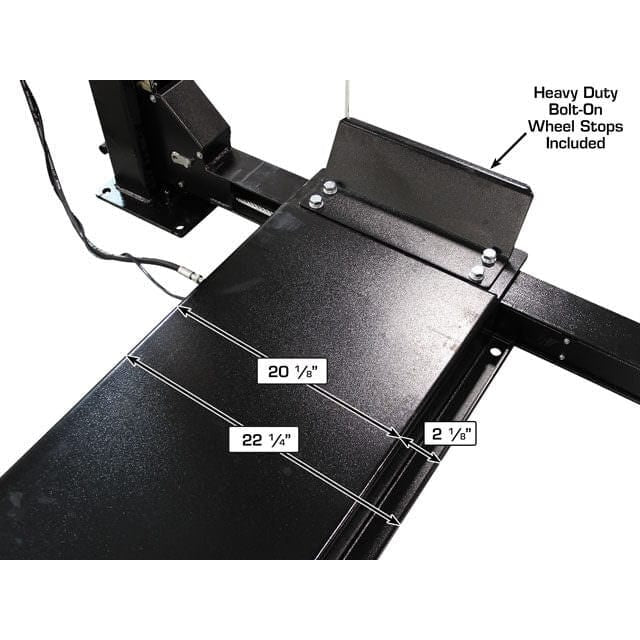

| Runway Width |
20 1/8" |
| Runway Rail Width |
2" |

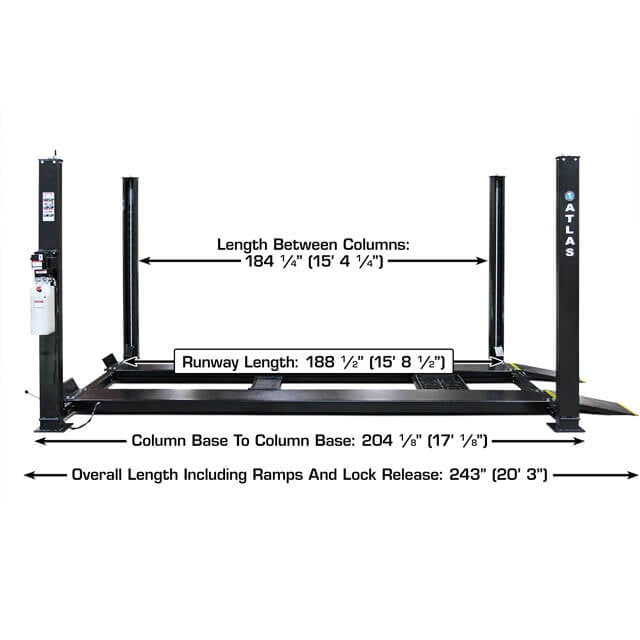

| Runway Length |
196 1/2" (16' 4 1/2") |
| Runway Thickness |
4 3/4" |
| Width Between Runways |
38 7/8" (3' 2 7/8") |
| Width Between Runway Rails |
34 3/4" (2' 10 3/4") |
| Outside Runway to Outside Runway |
79" (6' 7") |

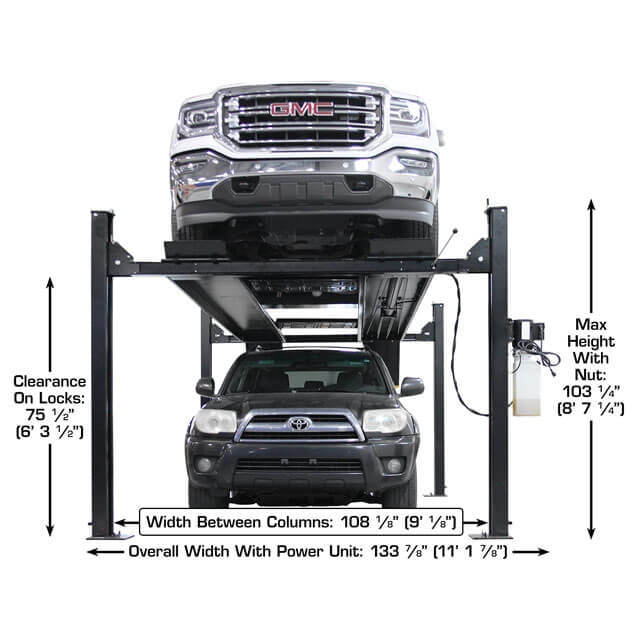

| Clearance Between Columns |
108 1/8" (9' 1/8") |

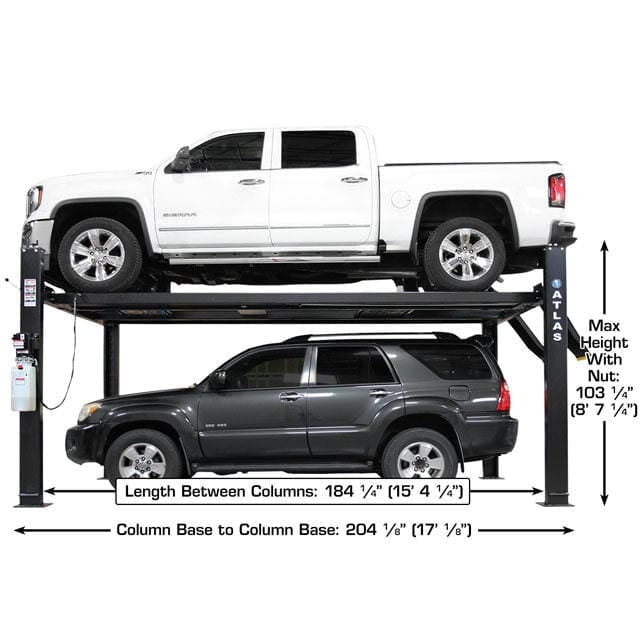

| Length Between Columns |
184 1/4" (15' 4 1/4") |
| Maximum Wheel Base |
184" (15' 4") |
| Drive Thru (Outside of tire to outside of tire) |
98 5/8" (8' 2 5/8") |
| Motor/Electrical Requirement |
110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight |
2,975 lb. |
Manual
Atlas Apex 9 Manual
